Art.No
Name
Price
Quantity

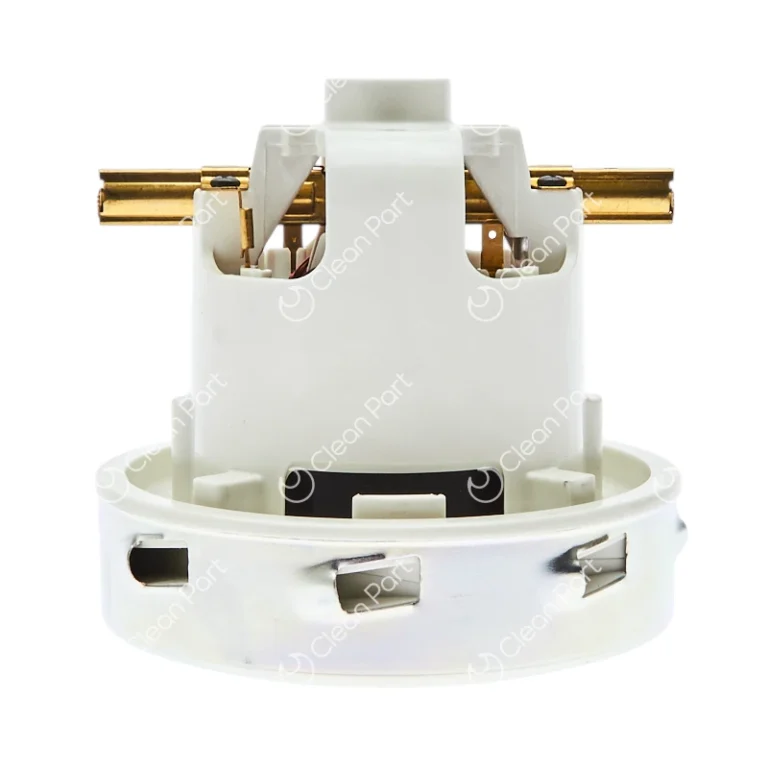

2505325
Vacuum motor – Ametek [230 Volt] [1200 Watt]
Log in to see prices
Specifications
Brand:
Ametek
Volt:
230 Volt
Watt:
1200 Watt
Current:
AC
Stages:
1
Discharge:
Gills
Type:
Peripheral By Pass
Total height (mm):
132 mm
Turbine housing height (mm):
44.5 mm
Turbine housing diameter (mm):
130 mm
Fan housing diameter (mm):
86.5 mm
Exhaust pipe ID (mm):
(-)
Exhaust pipe OD (mm):
(-)
Mounting holes:
No mounting holes
Height mounting holes (mm):
(-)
Max rpm:
(-)
Intake pipe (mm):
(-)
Width over carbon brush(mm):
127.5 mm
Carbon brush:
3325135
Cables:
No
Cable connectors:
No connectors
Notes
Oem
00322110 (Hako)
⋅
064200005.09
⋅
2505325
⋅
2505327 (Ghibli)
Fits machine
Hako Supervac 100

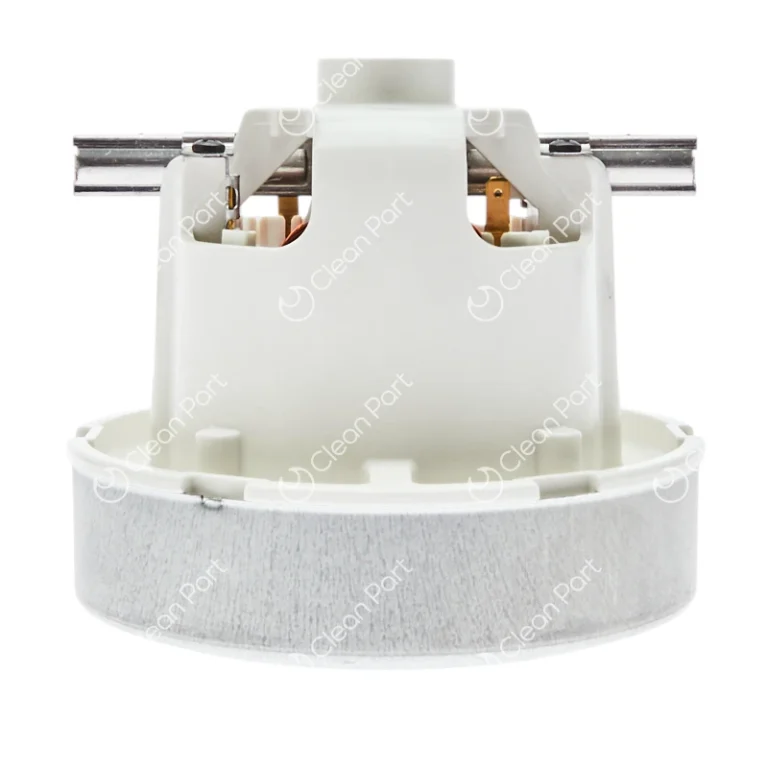

3023010
Vacuum motor – Ametek [230 Volt] [1200 Watt]
Log in to see prices
Specifications
Brand:
Ametek
Volt:
230 Volt
Watt:
1200 Watt
Current:
AC
Stages:
1
Discharge:
Thru flow
Type:
Thru Flow
Total height (mm):
121 mm
Turbine housing height (mm):
45 mm
Turbine housing diameter (mm):
130 mm
Fan housing diameter (mm):
86.5 mm
Exhaust pipe ID (mm):
(-)
Exhaust pipe OD (mm):
(-)
Mounting holes:
No mounting holes
Height mounting holes (mm):
(-)
Max rpm:
(-)
Intake pipe (mm):
(-)
Width over carbon brush(mm):
127.5 mm
Carbon brush:
3325135
Cables:
No
Cable connectors:
No connectors
Notes
Oem
3023010, 6210820029, 2505318, 063200020.11
Fits machine

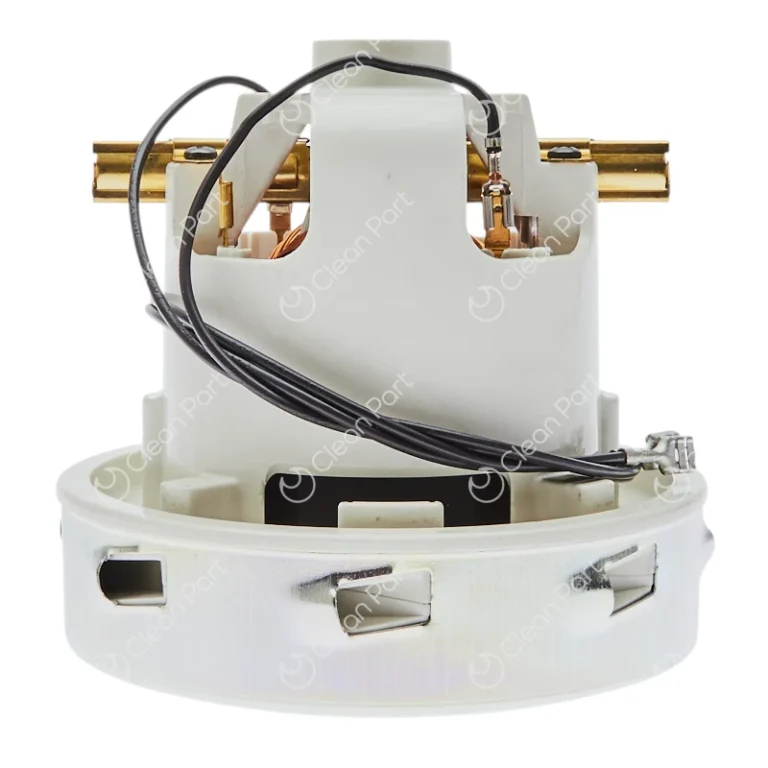

3023017
Vacuum motor – Ametek [230 Volt] [1200 Watt]
Log in to see prices
Specifications
Brand:
Ametek
Volt:
230 Volt
Watt:
1200 Watt
Current:
AC
Stages:
1
Discharge:
Gills
Type:
Peripheral By Pass
Total height (mm):
131 mm
Turbine housing height (mm):
44.5 mm
Turbine housing diameter (mm):
130 mm
Fan housing diameter (mm):
86.5 mm
Exhaust pipe ID (mm):
(-)
Exhaust pipe OD (mm):
(-)
Mounting holes:
No mounting holes
Height mounting holes (mm):
(-)
Max rpm:
(-)
Intake pipe (mm):
(-)
Width over carbon brush(mm):
116 mm
Carbon brush:
3320115
Cables:
Yes
Cable connectors:
Flat connector (female)
Notes
Oem
3023017, 6110820033, 064200027
Fits machine

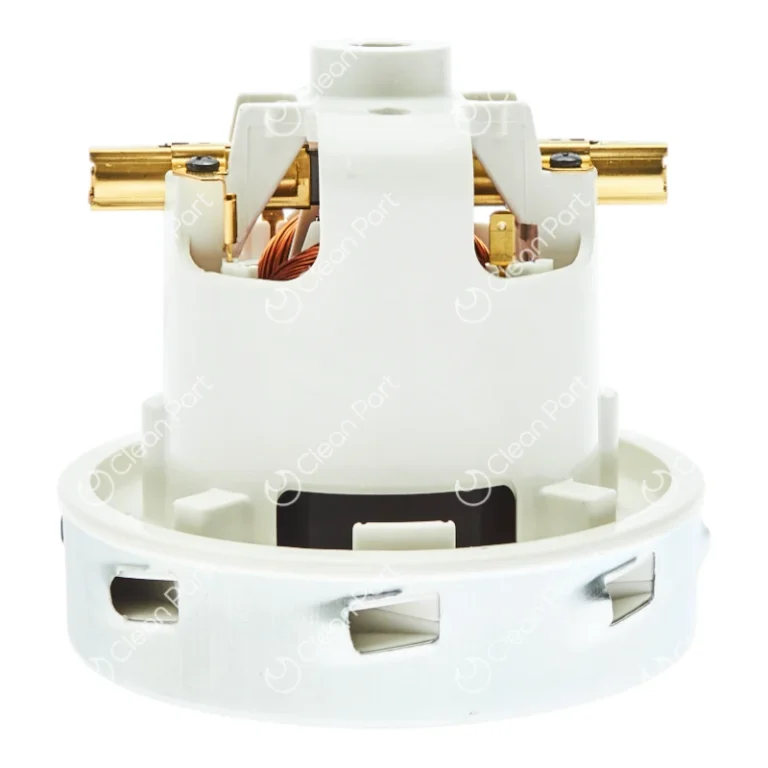

063700003
Vacuum motor – Ametek [230 Volt] [1200 Watt]
Log in to see prices
Specifications
Brand:
Ametek
Volt:
230 Volt
Watt:
1200 Watt
Current:
AC
Stages:
1
Discharge:
Gills
Type:
Peripheral By Pass
Total height (mm):
136 mm
Turbine housing height (mm):
45.7 mm
Turbine housing diameter (mm):
144 mm
Fan housing diameter (mm):
(-)
Exhaust pipe ID (mm):
(-)
Exhaust pipe OD (mm):
(-)
Mounting holes:
(-)
Height mounting holes (mm):
(-)
Max rpm:
(-)
Intake pipe (mm):
(-)
Width over carbon brush(mm):
(-)
Carbon brush:
302401K (or 3325135?)
Cables:
(-)
Cable connectors:
(-)
Notes
Oem
063700003.07, 6110950011
Fits machine

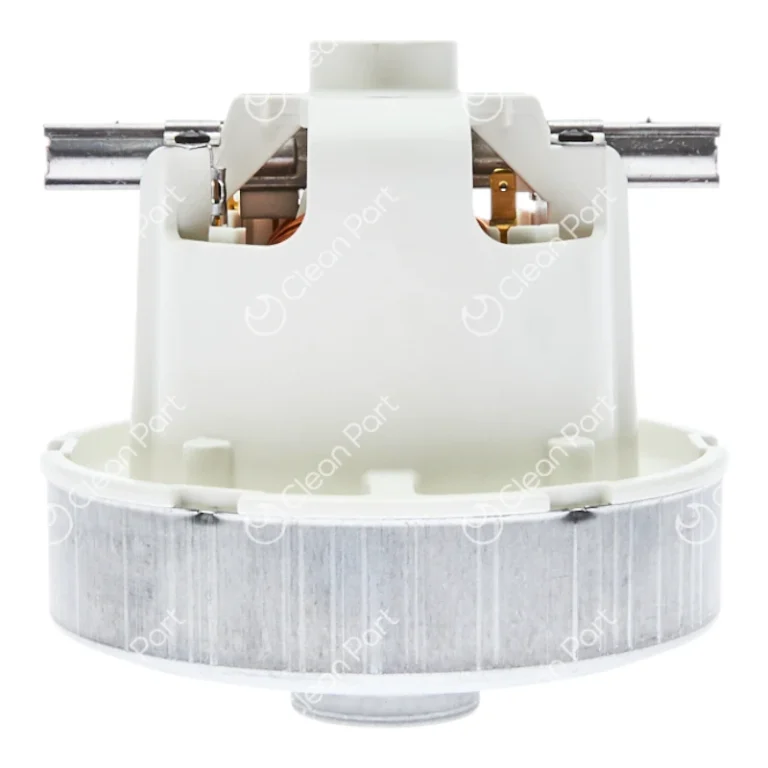

302302
Vacuum motor – Ametek [230 Volt] [1200 Watt]
Log in to see prices
Specifications
Brand:
Ametek
Volt:
230 Volt
Watt:
1200 Watt
Current:
AC
Stages:
1
Discharge:
Thru flow
Type:
Thru Flow
Total height (mm):
121 mm
Turbine housing height (mm):
45 mm
Turbine housing diameter (mm):
130 mm
Fan housing diameter (mm):
(-)
Exhaust pipe ID (mm):
(-)
Exhaust pipe OD (mm):
(-)
Mounting holes:
(-)
Height mounting holes (mm):
(-)
Max rpm:
(-)
Intake pipe (mm):
(-)
Width over carbon brush(mm):
(-)
Carbon brush:
3325135
Cables:
(-)
Cable connectors:
(-)
Notes
Oem
063200085, 063200085.05, 6210820036
Fits machine
W11705
Vacuum motor – Ametek [230 Volt] [1250 Watt]
Log in to see prices
Specifications
Brand:
Ametek
Volt:
230 Volt
Watt:
1250 Watt
Current:
AC
Stages:
2
Discharge:
Gills
Type:
Peripheral By Pass
Total height (mm):
175 mm
Turbine housing height (mm):
(-)
Turbine housing diameter (mm):
144 mm
Fan housing diameter (mm):
80 mm
Exhaust pipe ID (mm):
(-)
Exhaust pipe OD (mm):
(-)
Mounting holes:
No mounting holes
Height mounting holes (mm):
(-)
Max rpm:
(-)
Intake pipe (mm):
(-)
Width over carbon brush(mm):
116.5 mm
Carbon brush:
(-)
Cables:
No
Cable connectors:
No connectors
Notes
Oem
2505355
Fits machine

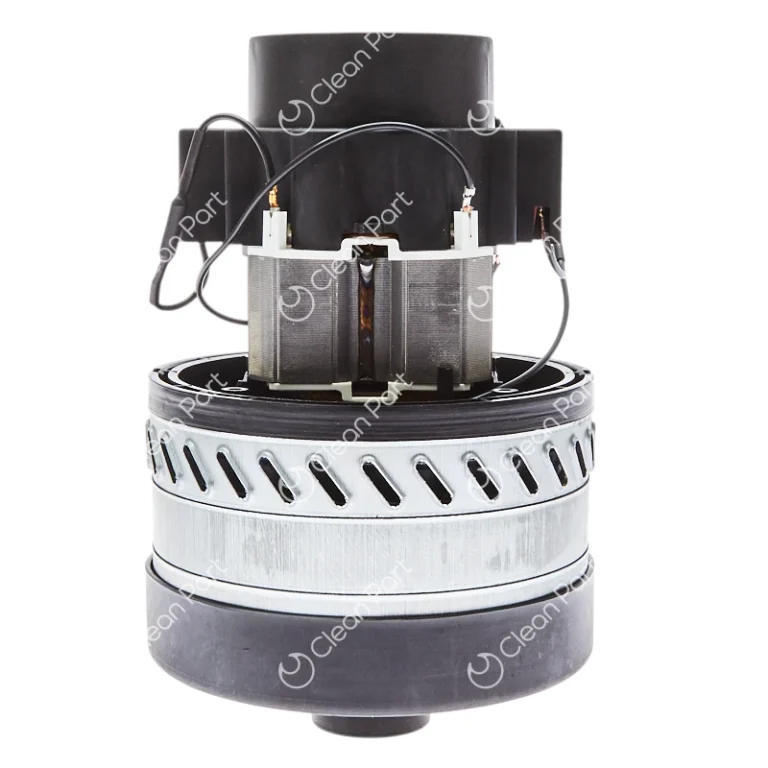

3023014
Vacuum motor – Ametek [230 Volt] [1300 Watt]
Log in to see prices
Specifications
Brand:
Ametek
Volt:
230 Volt
Watt:
1300 Watt
Current:
AC
Stages:
3
Discharge:
Gills
Type:
Peripheral By Pass
Total height (mm):
200 mm
Turbine housing height (mm):
90 mm
Turbine housing diameter (mm):
144 mm
Fan housing diameter (mm):
78 mm
Exhaust pipe ID (mm):
(-)
Exhaust pipe OD (mm):
(-)
Mounting holes:
No mounting holes
Height mounting holes (mm):
(-)
Max rpm:
(-)
Intake pipe (mm):
40.5x25 mm
Width over carbon brush(mm):
122.5 mm
Carbon brush:
(-)
Cables:
Yes
Cable connectors:
No connectors
Notes
Oem
3023014, 6110960213, 069204001
Fits machine

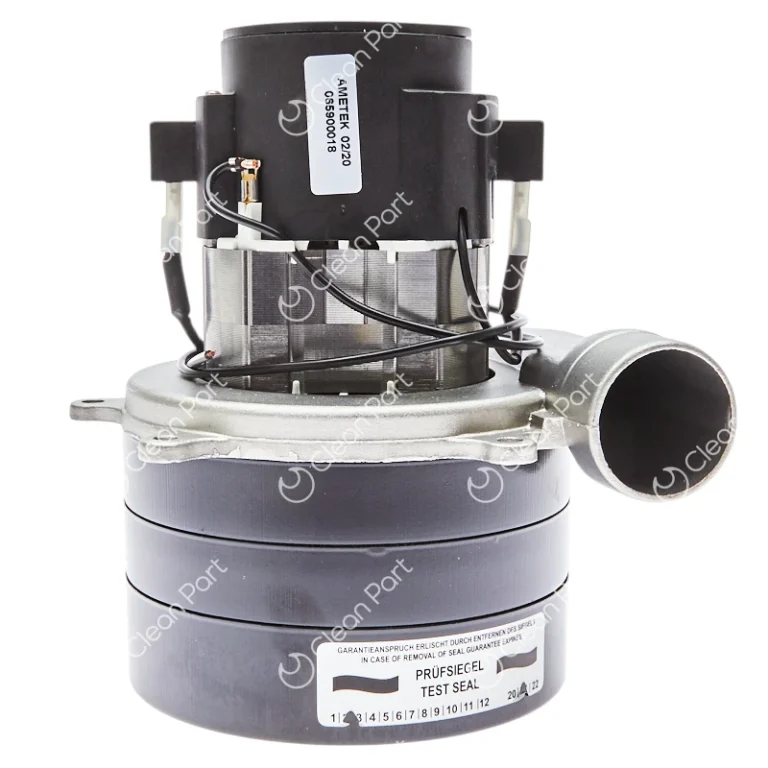

3023015
Vacuum motor – Ametek [230 Volt] [1400 Watt]
Log in to see prices
Specifications
Brand:
Ametek
Volt:
230 Volt
Watt:
1400 Watt
Current:
AC
Stages:
3
Discharge:
Exhaust pipe
Type:
Tangential By Pass
Total height (mm):
209 mm
Turbine housing height (mm):
102 mm
Turbine housing diameter (mm):
144 mm
Fan housing diameter (mm):
79 mm
Exhaust pipe ID (mm):
42.5 mm
Exhaust pipe OD (mm):
48 mm
Mounting holes:
4
Height mounting holes (mm):
86 mm
Max rpm:
(-)
Intake pipe (mm):
(-)
Width over carbon brush(mm):
124 mm
Carbon brush:
(-)
Cables:
Yes
Cable connectors:
No connectors
Notes
Oem
3023015, 06590001
Fits machine

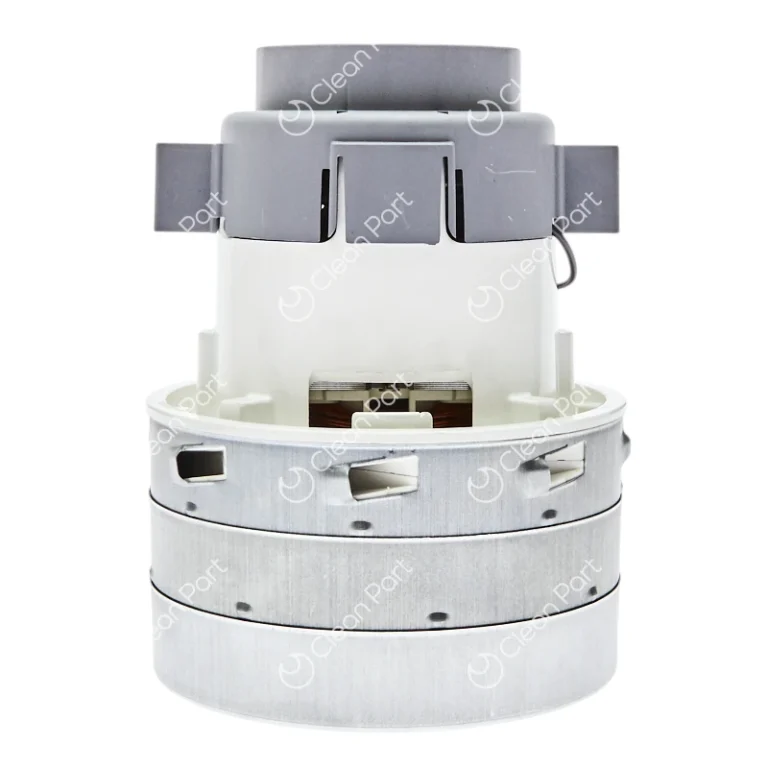

3023012
Vacuum motor – Ametek [230 Volt] [1450 Watt]
Log in to see prices
Specifications
Brand:
Ametek
Volt:
230 Volt
Watt:
1450 Watt
Current:
AC
Stages:
3
Discharge:
Gills
Type:
Peripheral By Pass
Total height (mm):
198 mm
Turbine housing height (mm):
95 mm
Turbine housing diameter (mm):
144 mm
Fan housing diameter (mm):
78 mm
Exhaust pipe ID (mm):
(-)
Exhaust pipe OD (mm):
(-)
Mounting holes:
No mounting holes
Height mounting holes (mm):
(-)
Max rpm:
(-)
Intake pipe (mm):
(-)
Width over carbon brush(mm):
137 mm
Carbon brush:
(-)
Cables:
Yes
Cable connectors:
No connectors
Notes
Oem
3023012, 060800004.01, 6110950001
Fits machine

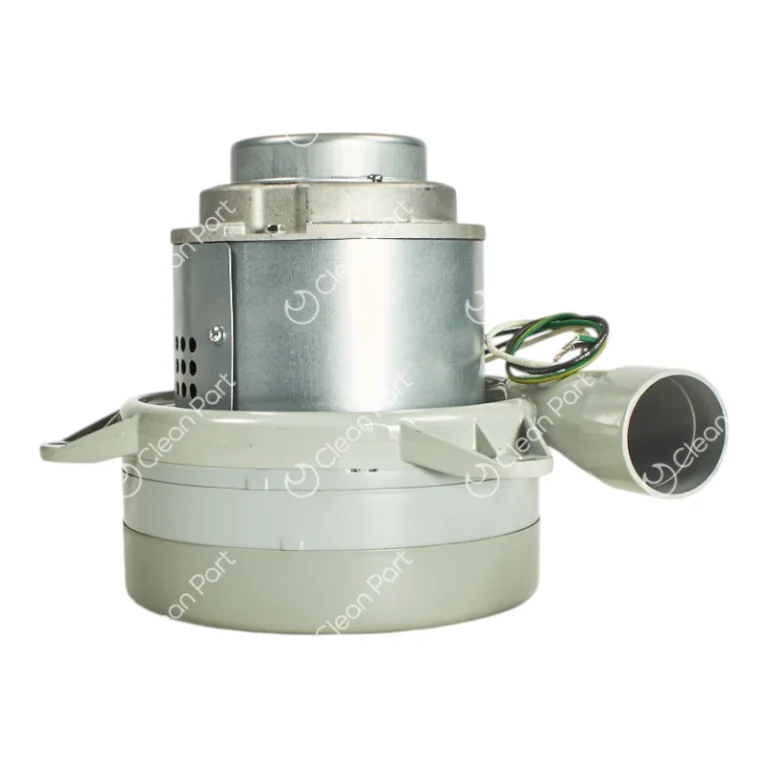

116136-00
Vacuum motor – Ametek [230 Volt] [1450 Watt]
Log in to see prices
Specifications
Brand:
Ametek
Volt:
230 Volt
Watt:
1450 Watt
Current:
AC
Stages:
3
Discharge:
Exhaust pipe
Type:
Tangential By Pass
Total height (mm):
198 mm
Turbine housing height (mm):
87.5 mm
Turbine housing diameter (mm):
183 mm
Fan housing diameter (mm):
85.3 mm
Exhaust pipe ID (mm):
46 mm
Exhaust pipe OD (mm):
51 mm
Mounting holes:
3
Height mounting holes (mm):
63 mm
Max rpm:
20891
Intake pipe (mm):
(-)
Width over carbon brush(mm):
(-)
Carbon brush:
33415-3
Cables:
Yes
Cable connectors:
No connectors
Notes
Oem
116136-00
Fits machine

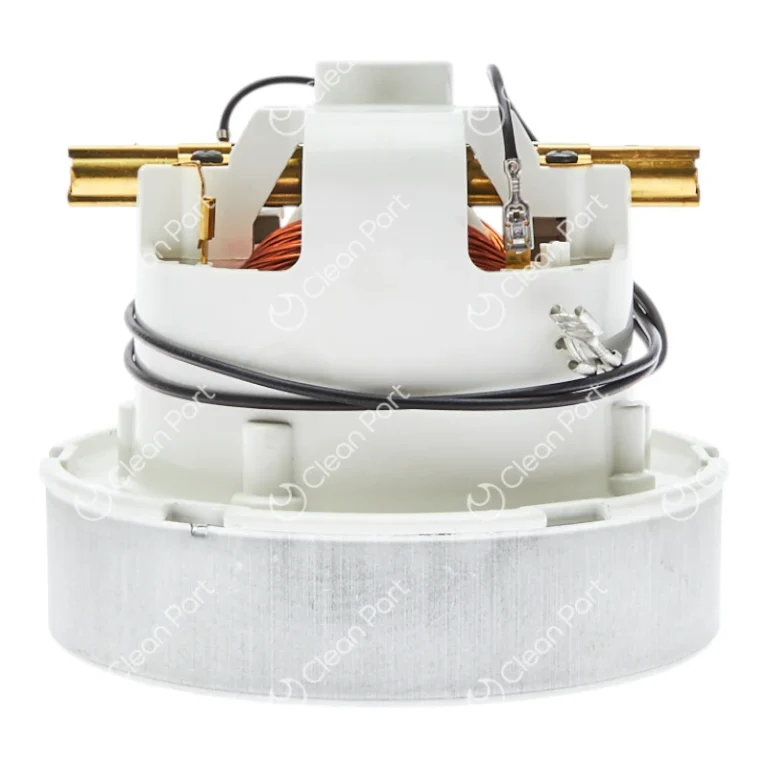

302402
Vacuum motor – Ametek [230 Volt] [1500 Watt]
Log in to see prices
Specifications
Brand:
Ametek
Volt:
230 Volt
Watt:
1500 Watt
Current:
AC
Stages:
1
Discharge:
Thru flow
Type:
Thru Flow
Total height (mm):
124 mm
Turbine housing height (mm):
44 mm
Turbine housing diameter (mm):
141 mm
Fan housing diameter (mm):
101 mm
Exhaust pipe ID (mm):
(-)
Exhaust pipe OD (mm):
(-)
Mounting holes:
No mounting holes
Height mounting holes (mm):
(-)
Max rpm:
(-)
Intake pipe (mm):
(-)
Width over carbon brush(mm):
127.5 mm
Carbon brush:
3325135
Cables:
Yes
Cable connectors:
Flat connector (female)
Notes
Oem
6210950007, 064300130, 064300110, 064300010, 064300013, 064300015, 064300008, 064300105, 064300022, 064300088, 064300032, 6210950007
Fits machine

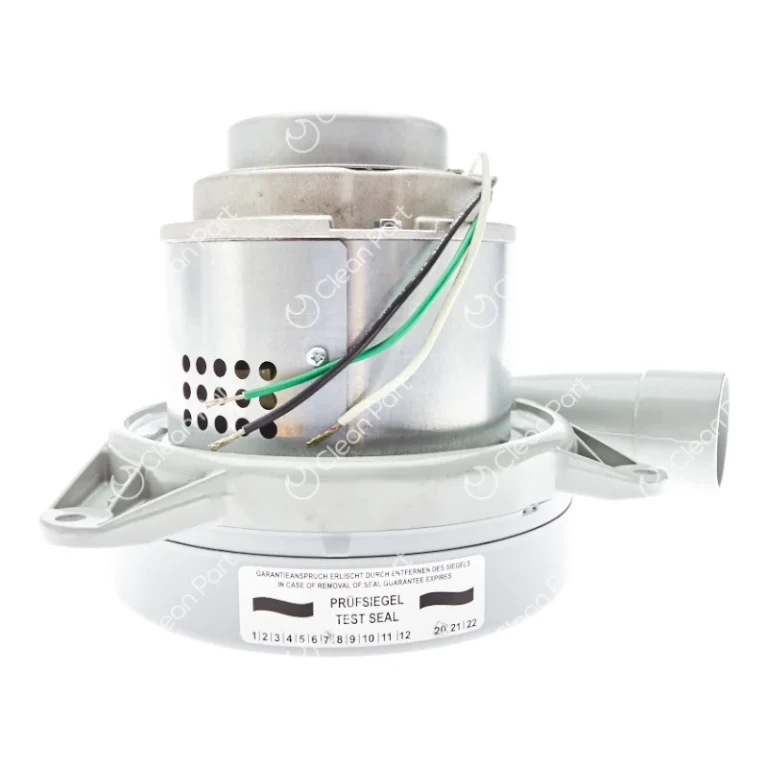

115950
Vacuum motor – Ametek [230 Volt] [1550 Watt]
Log in to see prices
Specifications
Brand:
Ametek
Volt:
230 Volt
Watt:
1550 Watt
Current:
AC
Stages:
2
Discharge:
Exhaust pipe
Type:
Tangential By Pass
Total height (mm):
174.5 mm
Turbine housing height (mm):
64.1 mm
Turbine housing diameter (mm):
183 mm
Fan housing diameter (mm):
85.3 mm
Exhaust pipe ID (mm):
46.3 mm
Exhaust pipe OD (mm):
50.6 mm
Mounting holes:
3
Height mounting holes (mm):
39.5 mm
Max rpm:
21623
Intake pipe (mm):
(-)
Width over carbon brush(mm):
0 mm
Carbon brush:
33415-3
Cables:
Yes
Cable connectors:
No connectors
Notes
Oem
115950
⋅
115950-00
Fits machine
061300500
Vacuum motor – Ametek [230 Volt] [800 Watt]
Log in to see prices
Specifications
Brand:
Ametek
Volt:
230 Volt
Watt:
800 Watt
Current:
AC
Stages:
2
Discharge:
Gills
Type:
Peripheral By Pass
Total height (mm):
167 mm
Turbine housing height (mm):
63.4 mm
Turbine housing diameter (mm):
107 mm
Fan housing diameter (mm):
(-)
Exhaust pipe ID (mm):
(-)
Exhaust pipe OD (mm):
(-)
Mounting holes:
(-)
Height mounting holes (mm):
(-)
Max rpm:
(-)
Intake pipe (mm):
(-)
Width over carbon brush(mm):
(-)
Carbon brush:
(-)
Cables:
(-)
Cable connectors:
(-)
Notes
Oem
61300500, 611093
Fits machine

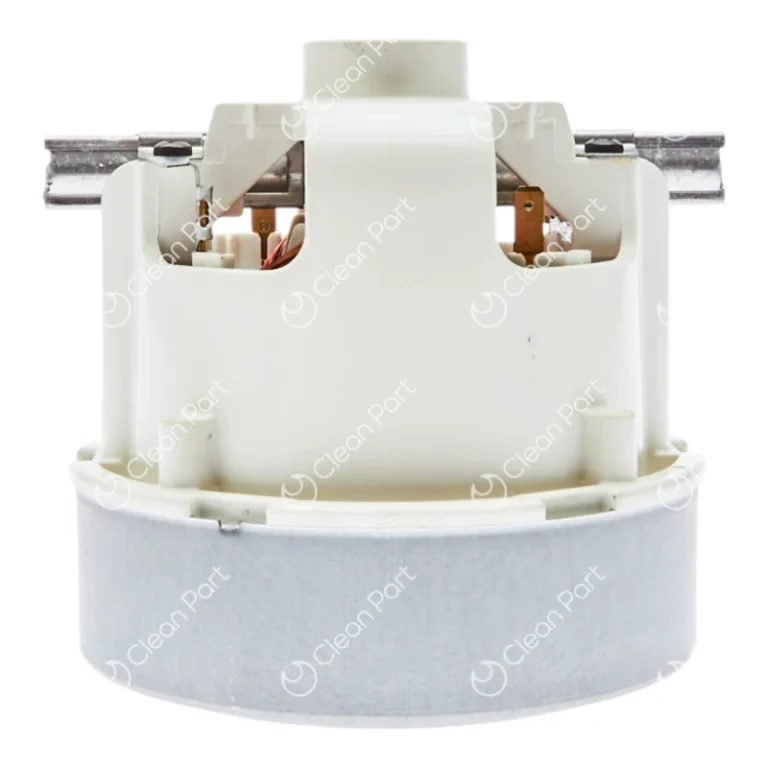

302404
Vacuum motor – Ametek [230 Volt] [850 Watt]
Log in to see prices
Specifications
Brand:
Ametek
Volt:
230 Volt
Watt:
850 Watt
Current:
AC
Stages:
1
Discharge:
Thru flow
Type:
Thru Flow
Total height (mm):
113 mm
Turbine housing height (mm):
44 mm
Turbine housing diameter (mm):
107 mm
Fan housing diameter (mm):
86.5 mm
Exhaust pipe ID (mm):
(-)
Exhaust pipe OD (mm):
(-)
Mounting holes:
No mounting holes
Height mounting holes (mm):
(-)
Max rpm:
(-)
Intake pipe (mm):
(-)
Width over carbon brush(mm):
116 mm
Carbon brush:
3320115
Cables:
No
Cable connectors:
No connectors
Notes
Oem
063200291
⋅
1032640 (Tennant)
⋅
302404
⋅
993822 (Tennant)
Fits machine

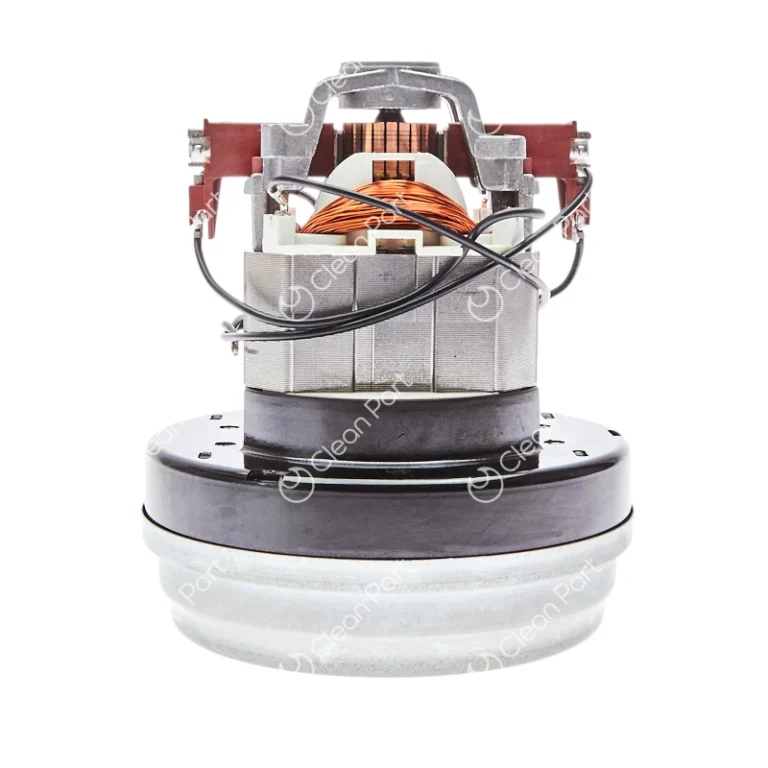

2505200
Vacuum motor – Ametek [230 Volt] [850 Watt]
Log in to see prices
Specifications
Brand:
Ametek
Volt:
230 Volt
Watt:
850 Watt
Current:
AC
Stages:
2
Discharge:
Thru flow
Type:
Thru Flow
Total height (mm):
165 mm
Turbine housing height (mm):
56 mm
Turbine housing diameter (mm):
144 mm
Fan housing diameter (mm):
0 mm
Exhaust pipe ID (mm):
(-)
Exhaust pipe OD (mm):
(-)
Mounting holes:
No mounting holes
Height mounting holes (mm):
(-)
Max rpm:
(-)
Intake pipe (mm):
(-)
Width over carbon brush(mm):
117 mm
Carbon brush:
(-)
Cables:
Yes
Cable connectors:
No connectors
Notes
Oem
2505200, 2505210, 6210930018, 060200013
Fits machine
1…658659660…673

Search products
