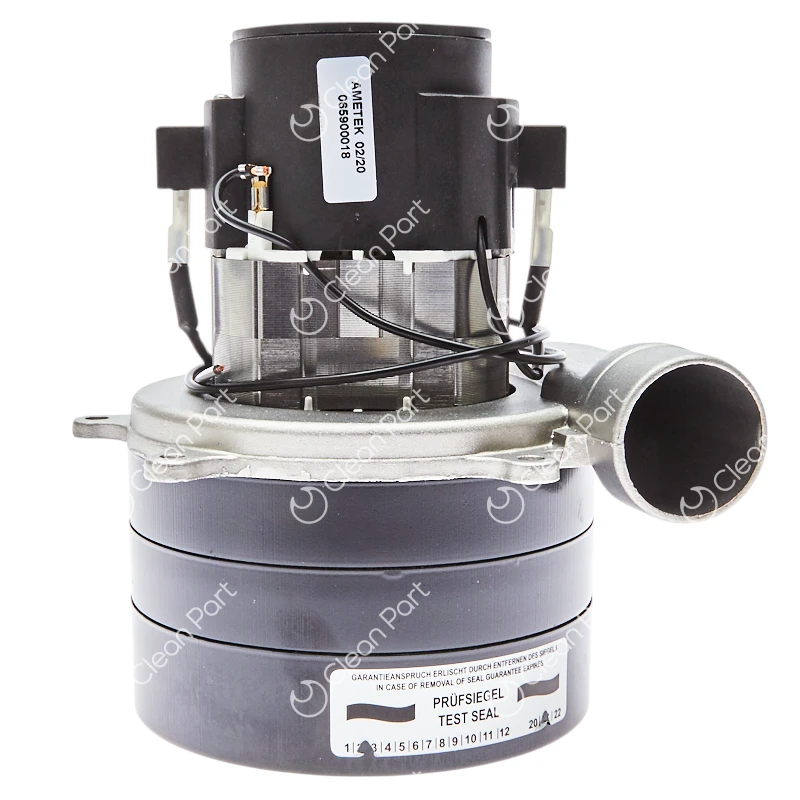

![Vacuum motor - Ametek [230 Volt] [1400 Watt]](https://cleanpart.se/wp-content/uploads/3023015-1.webp)

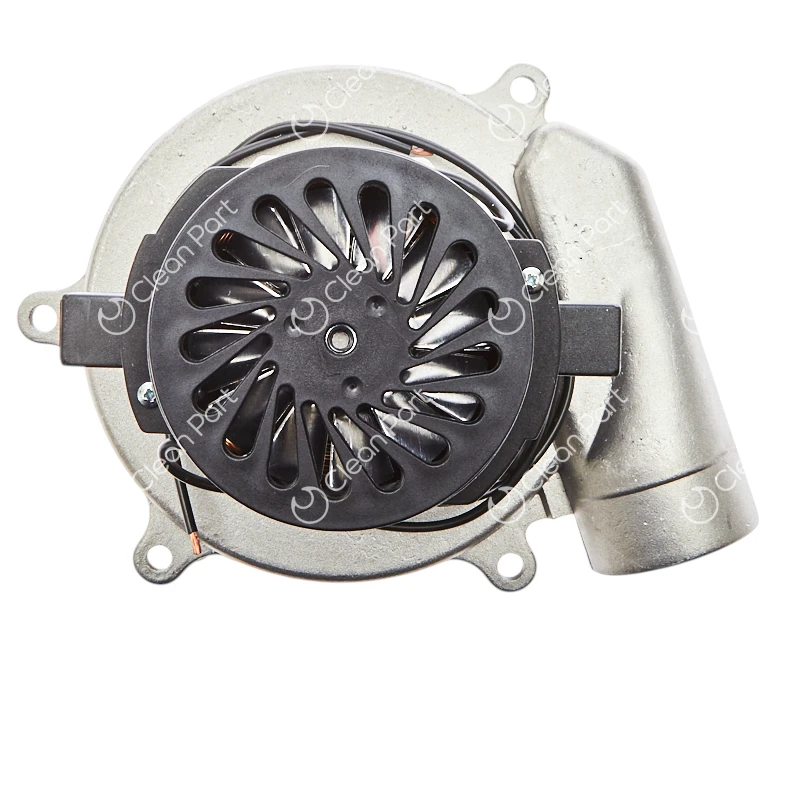

![Vacuum motor - Ametek [230 Volt] [1400 Watt] - Image 2](https://cleanpart.se/wp-content/uploads/3023015-2.webp)

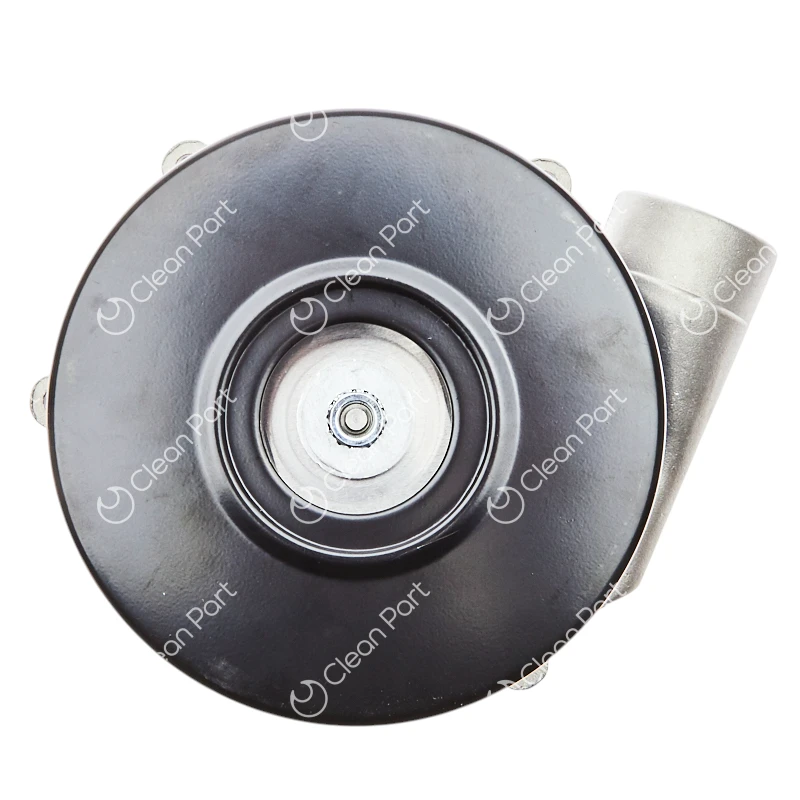

![Vacuum motor - Ametek [230 Volt] [1400 Watt] - Image 3](https://cleanpart.se/wp-content/uploads/3023015-3.webp)
| Brands | Ametek |
|---|---|
| Type | Tangential By Pass |
| Current | AC |
| Volt | 230 Volt |
| Watt | 1400 Watt |
| Steps | 3 |
| Discharge type | Exhaust pipe |
| Height total height (mm) | 209 mm |
| Height turbine housing (mm) | 102 mm |
| Diameter turbine house (mm) | 144 mm |
| Diameter fan housing (mm) | 79 mm |
| Width carbon brushes (mm) | 124 mm |
| Diameter exhaust pipe OD (mm) | 48 mm |
| Diameter exhaust pipe ID (mm) | 42.5 mm |
| Cables On Motor | Yes |
| Cable Connectors | No connectors |
| Mounting holes | 4 |
| Carbon brush no | (-) |
| Height mounting holes (mm) | 86 mm |
| Max RPM | (-) |
| Size - Intake pipe (mm) | (-) |
| OEM | 3023015, 06590001 |
