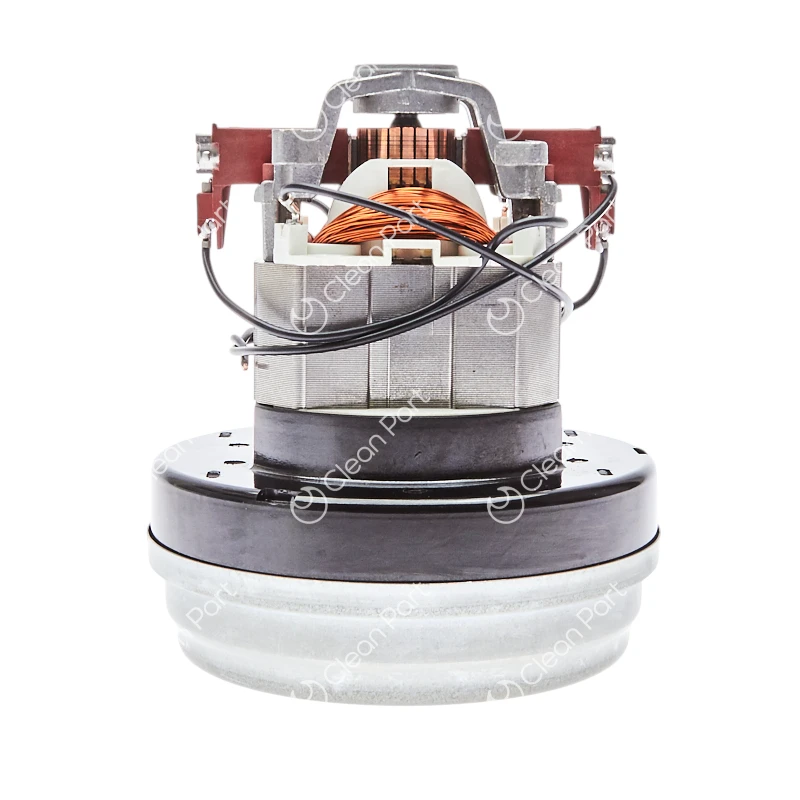

![Vacuum motor - Ametek [230 Volt] [850 Watt]](https://cleanpart.se/wp-content/uploads/2505200-1.webp)

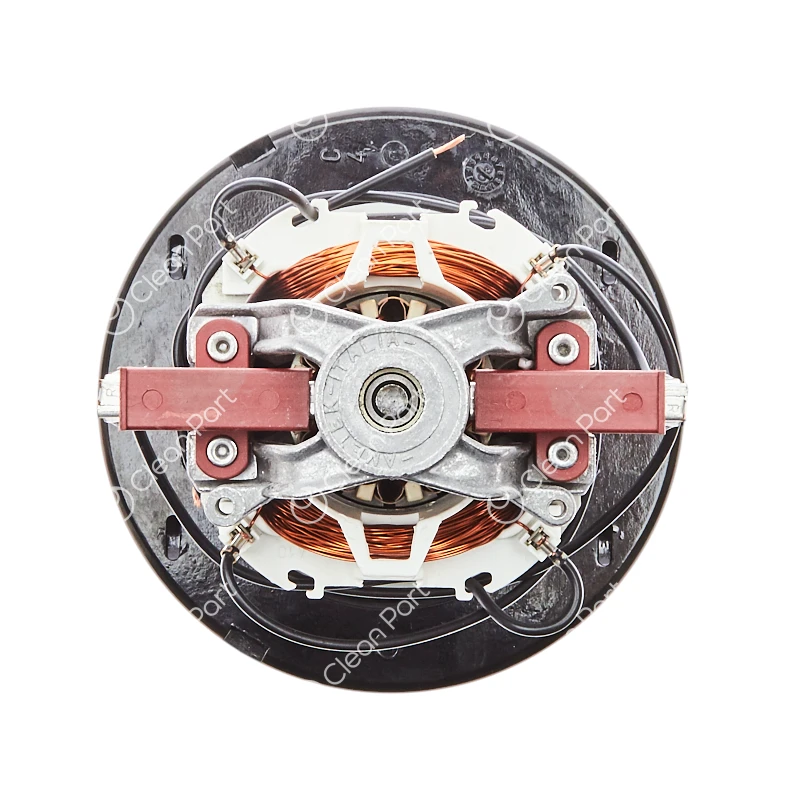

![Vacuum motor - Ametek [230 Volt] [850 Watt] - Image 2](https://cleanpart.se/wp-content/uploads/2505200-2.webp)

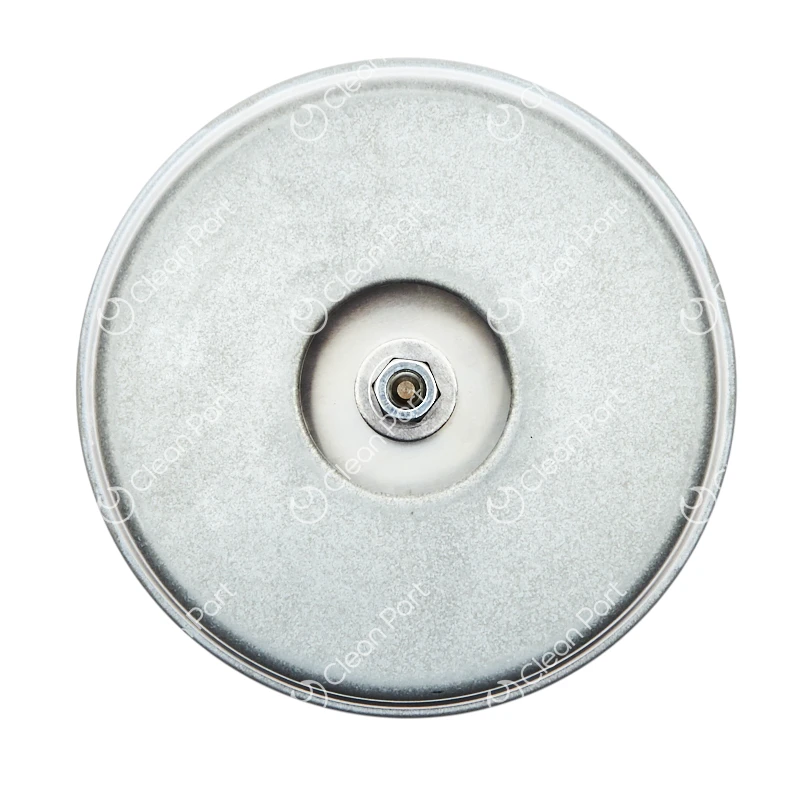

![Vacuum motor - Ametek [230 Volt] [850 Watt] - Image 3](https://cleanpart.se/wp-content/uploads/2505200-3.webp)
| Brands | Ametek |
|---|---|
| Type | Thru Flow |
| Current | AC |
| Volt | 230 Volt |
| Watt | 850 Watt |
| Steps | 2 |
| Discharge type | Thru flow |
| Height total height (mm) | 165 mm |
| Height turbine housing (mm) | 56 mm |
| Diameter turbine house (mm) | 144 mm |
| Diameter fan housing (mm) | 0 mm |
| Width carbon brushes (mm) | 117 mm |
| Height mounting holes (mm) | (-) |
| Cables On Motor | Yes |
| Carbon brush no | (-) |
| Cable Connectors | No connectors |
| Diameter exhaust pipe ID (mm) | (-) |
| Mounting holes | No mounting holes |
| Diameter exhaust pipe OD (mm) | (-) |
| Max RPM | (-) |
| Size - Intake pipe (mm) | (-) |
| OEM | 2505200, 2505210, 6210930018, 060200013 |
