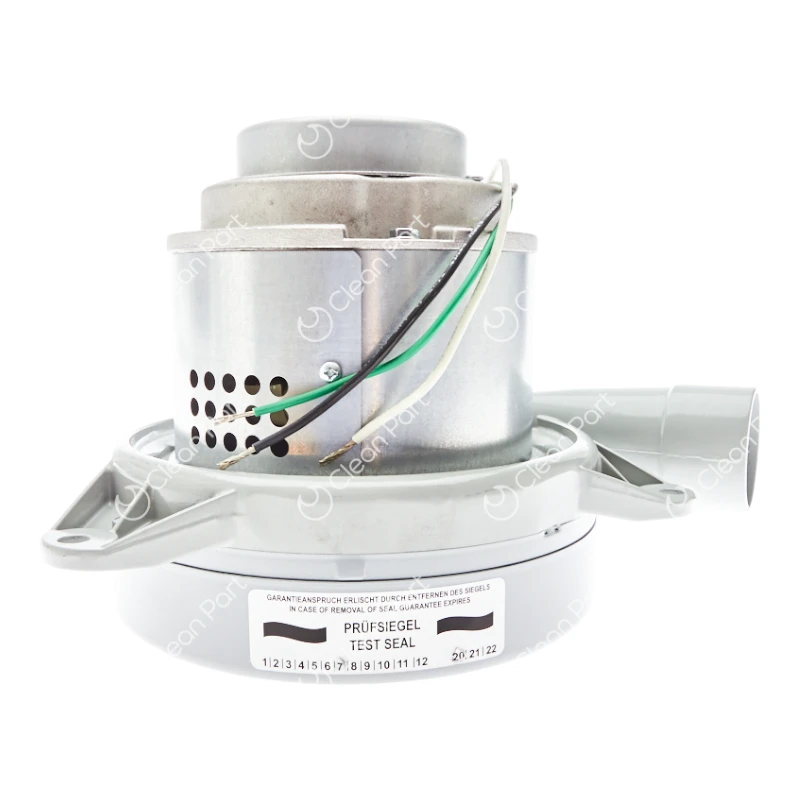

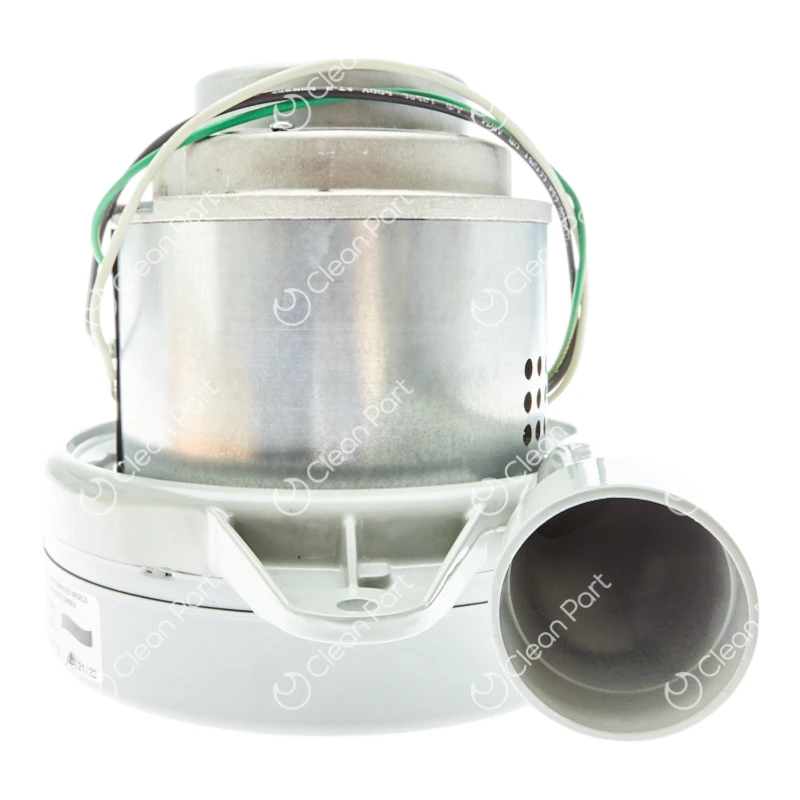

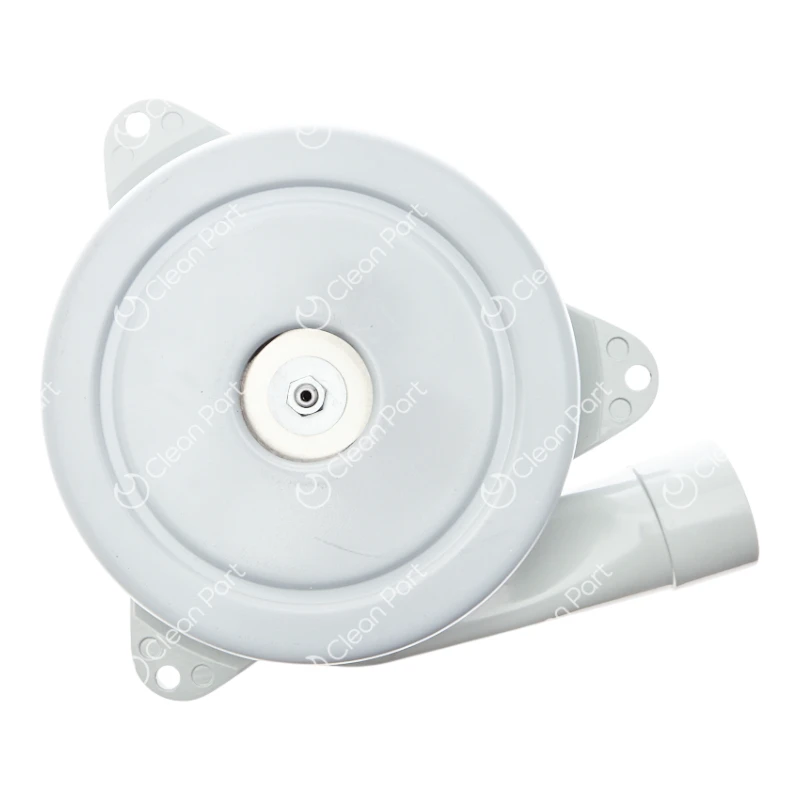

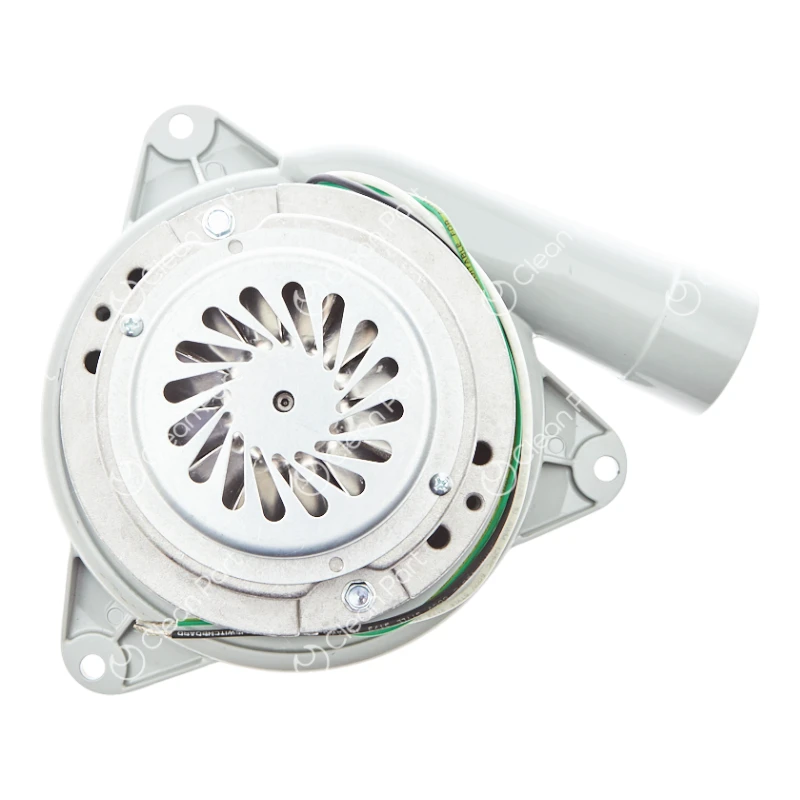

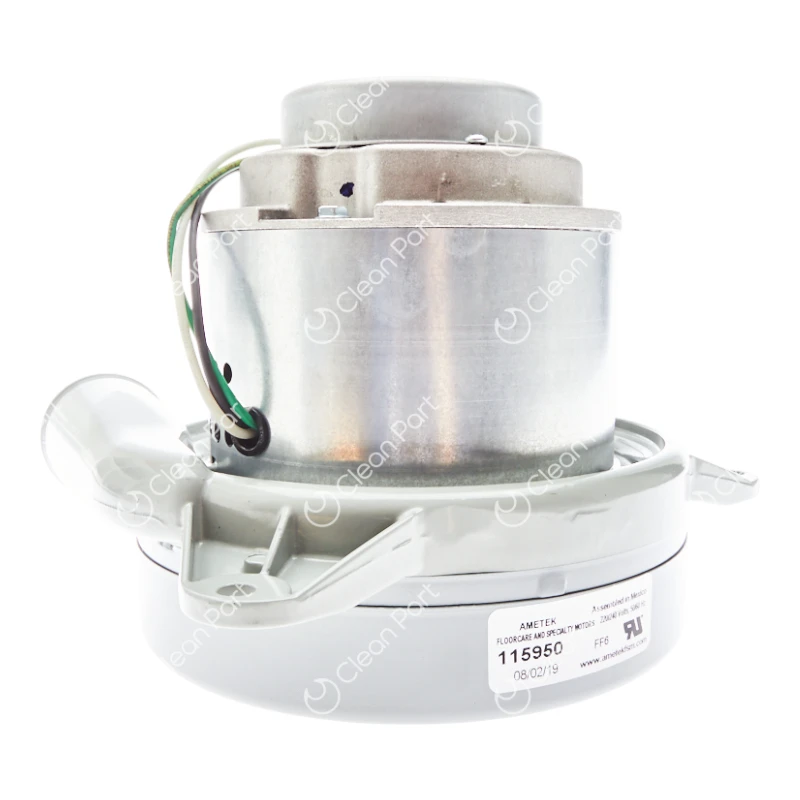

![Vacuum motor - Ametek [230 Volt] [1550 Watt]](https://cleanpart.se/wp-content/uploads/115950-1.webp)
![Vacuum motor - Ametek [230 Volt] [1550 Watt] - Image 2](https://cleanpart.se/wp-content/uploads/115950-2.webp)
![Vacuum motor - Ametek [230 Volt] [1550 Watt] - Image 3](https://cleanpart.se/wp-content/uploads/115950-3.webp)
![Vacuum motor - Ametek [230 Volt] [1550 Watt] - Image 4](https://cleanpart.se/wp-content/uploads/115950-4.webp)
![Vacuum motor - Ametek [230 Volt] [1550 Watt] - Image 5](https://cleanpart.se/wp-content/uploads/115950-5.webp)
| Brands | Ametek |
|---|---|
| Type | Tangential By Pass |
| Current | AC |
| Volt | 230 Volt |
| Watt | 1550 Watt |
| Steps | 2 |
| Max RPM | 21623 |
| Discharge type | Exhaust pipe |
| Height total height (mm) | 174.5 mm |
| Height turbine housing (mm) | 64.1 mm |
| Diameter turbine house (mm) | 183 mm |
| Diameter fan housing (mm) | 85.3 mm |
| Width carbon brushes (mm) | 0 mm |
| Diameter exhaust pipe OD (mm) | 50.6 mm |
| Diameter exhaust pipe ID (mm) | 46.3 mm |
| Cables On Motor | Yes |
| Cable Connectors | No connectors |
| Mounting holes | 3 |
| Height mounting holes (mm) | 39.5 mm |
| Carbon brush no | 33415-3 |
| Size - Intake pipe (mm) | (-) |
| OEM | 115950, 115950-00 |
