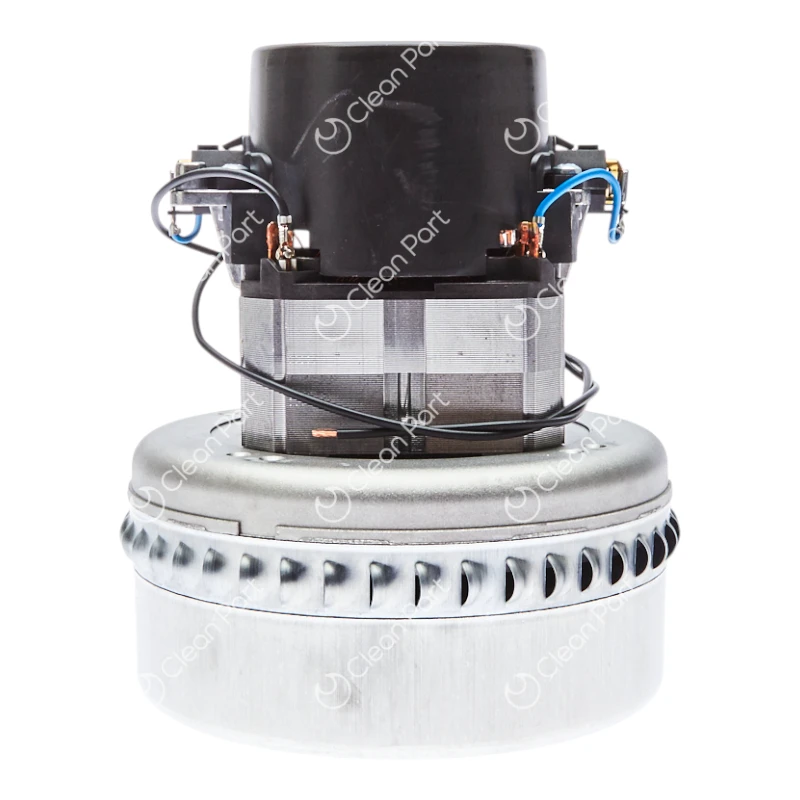

![Vacuum motor - Domel [230 Volt] [1300 Watt]](https://cleanpart.se/wp-content/uploads/492.3.794-1.webp)

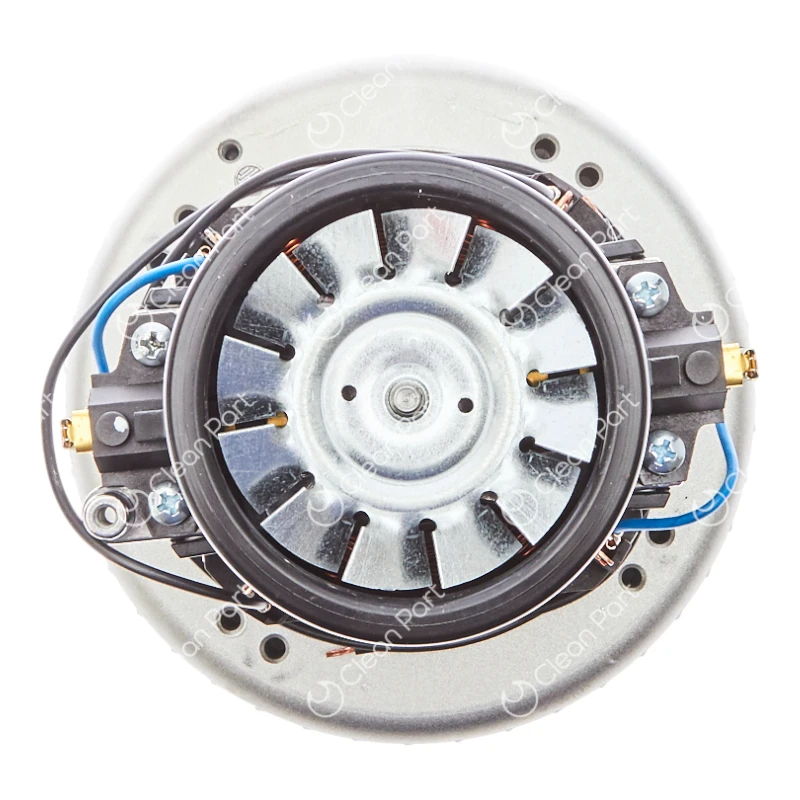

![Vacuum motor - Domel [230 Volt] [1300 Watt] - Image 2](https://cleanpart.se/wp-content/uploads/492.3.794-2.webp)

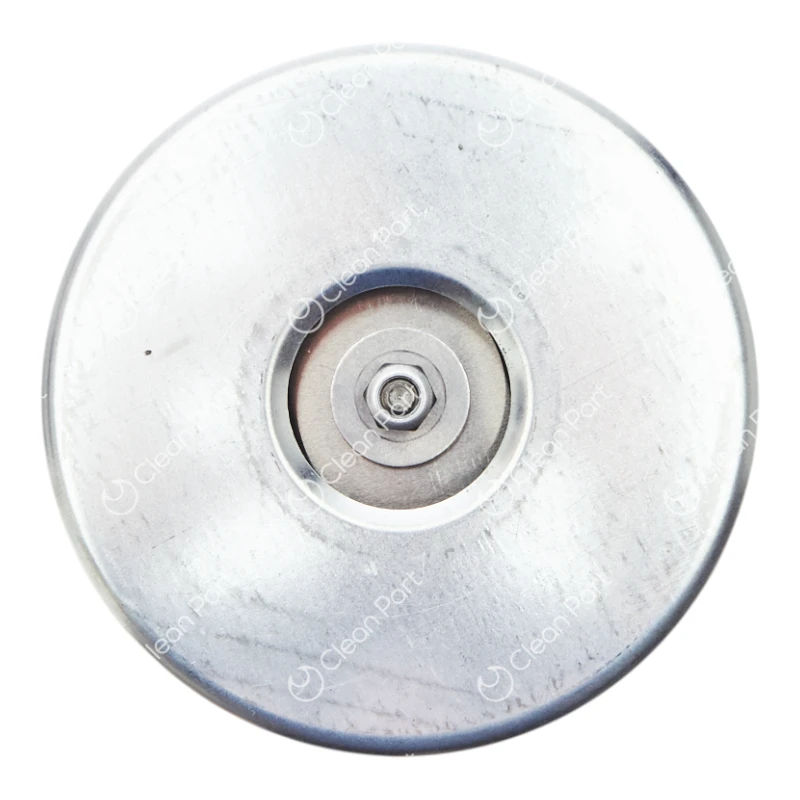

![Vacuum motor - Domel [230 Volt] [1300 Watt] - Image 3](https://cleanpart.se/wp-content/uploads/492.3.794-3.webp)
| Weight | 2,5 kg |
|---|---|
| Brands | Domel |
| Type | Peripheral By Pass |
| Current | AC |
| Volt | 230 Volt |
| Watt | 1300 Watt |
| Steps | 2 |
| Discharge type | Gills |
| Height total height (mm) | 173 mm |
| Height turbine housing (mm) | 69 mm |
| Diameter turbine house (mm) | 144 mm |
| Diameter fan housing (mm) | 79.5 mm |
| Width carbon brushes (mm) | 121 mm |
| Height mounting holes (mm) | (-) |
| Cables On Motor | Yes |
| Carbon brush no | (-) |
| Cable Connectors | No connectors |
| Diameter exhaust pipe ID (mm) | (-) |
| Mounting holes | No mounting holes |
| Diameter exhaust pipe OD (mm) | (-) |
| Max RPM | (-) |
| Size - Intake pipe (mm) | (-) |
| OEM | 492.3.794, MKM7794 |
