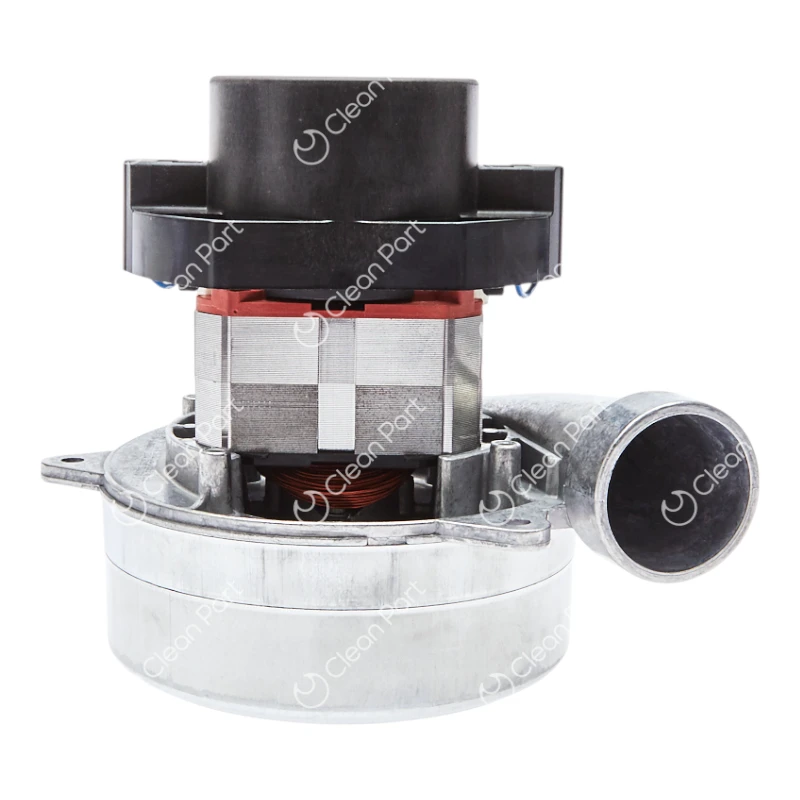

![Vacuum motor - Domel [230 Volt] [1600 Watt]](https://cleanpart.se/wp-content/uploads/491.3.714-4-1.webp)

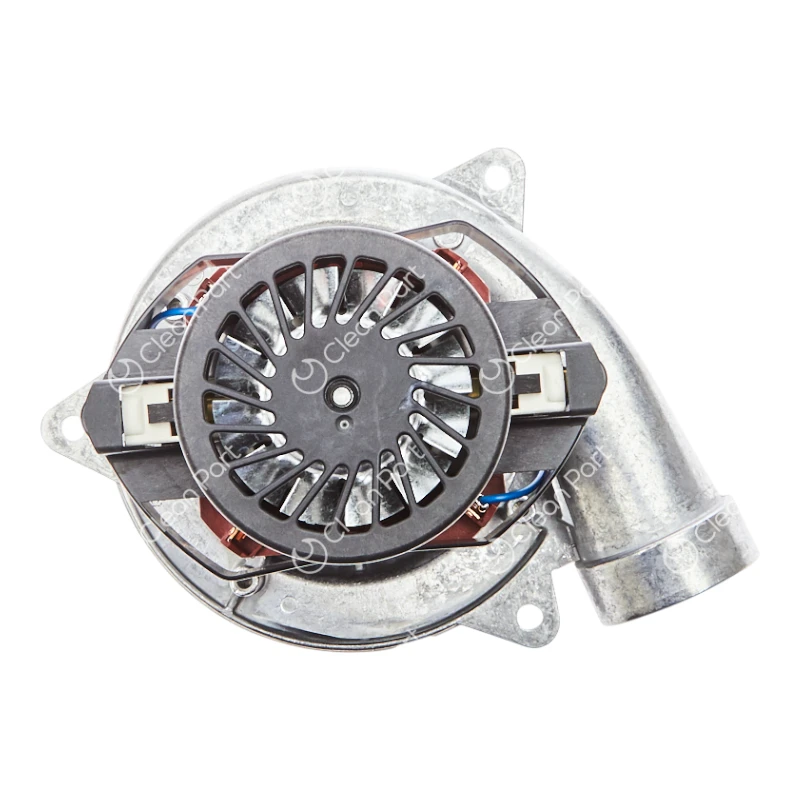

![Vacuum motor - Domel [230 Volt] [1600 Watt] - Image 2](https://cleanpart.se/wp-content/uploads/491.3.714-4-2.webp)

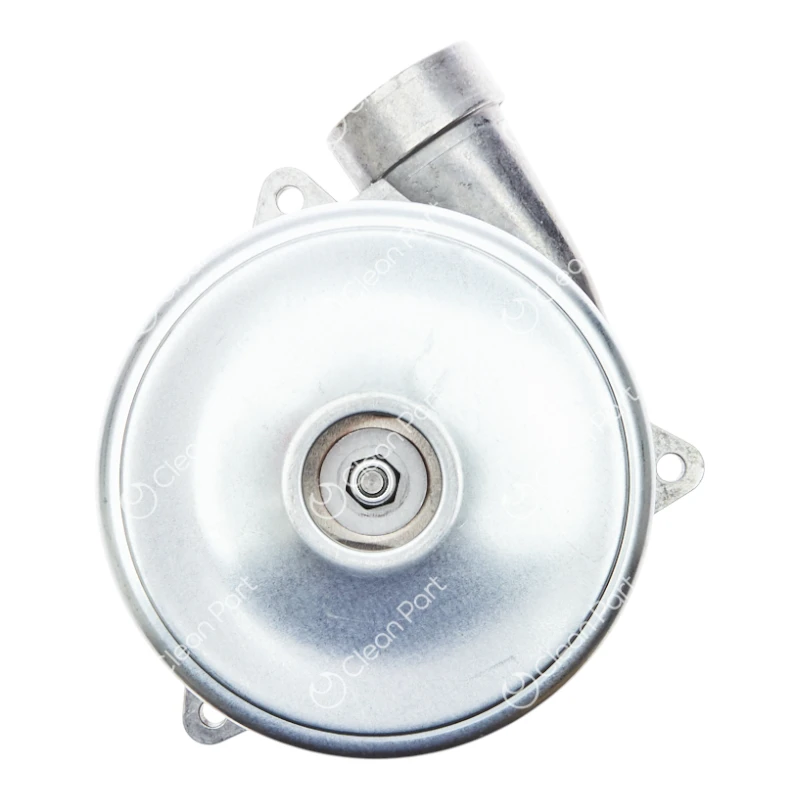

![Vacuum motor - Domel [230 Volt] [1600 Watt] - Image 3](https://cleanpart.se/wp-content/uploads/491.3.714-4-3.webp)
| Brands | Domel |
|---|---|
| Type | Tangential By Pass |
| Current | AC |
| Volt | 230 Volt |
| Watt | 1600 Watt |
| Steps | 2 |
| Discharge type | Exhaust pipe |
| Height total height (mm) | 182.5 mm |
| Height turbine housing (mm) | 58.5 mm |
| Diameter turbine house (mm) | 144 mm |
| Diameter fan housing (mm) | 79.5 mm |
| Width carbon brushes (mm) | 132 mm |
| Diameter exhaust pipe OD (mm) | 50.8 mm |
| Diameter exhaust pipe ID (mm) | 44 mm |
| Cables On Motor | No |
| Cable Connectors | No connectors |
| Mounting holes | 3 |
| Height mounting holes (mm) | 58.5 mm |
| Max RPM | (-) |
| Carbon brush no | 496.2.757-5 |
| Size - Intake pipe (mm) | (-) |
| OEM | 491.3.714-4 |
