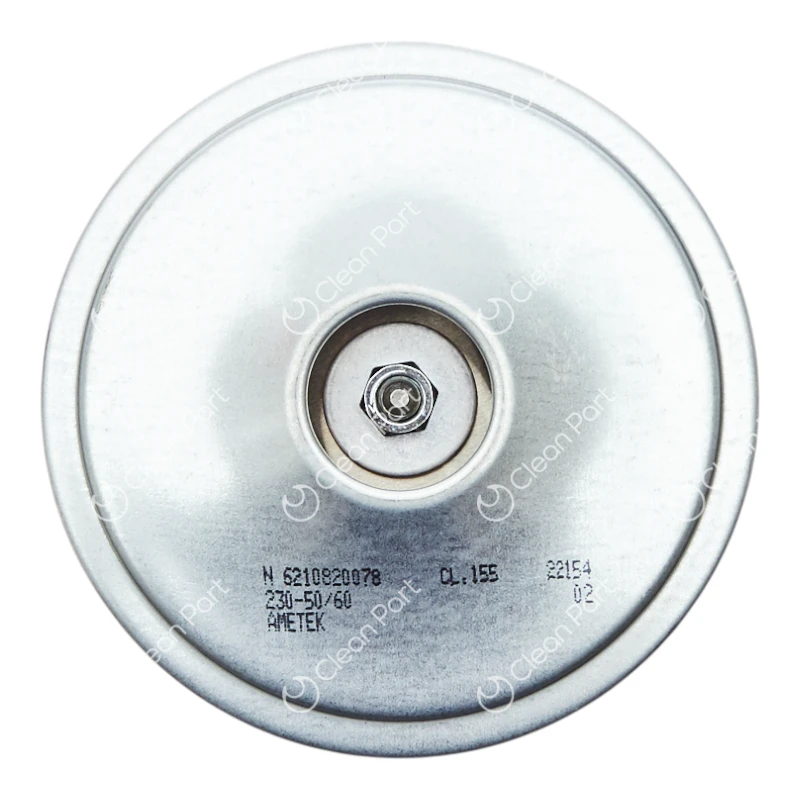

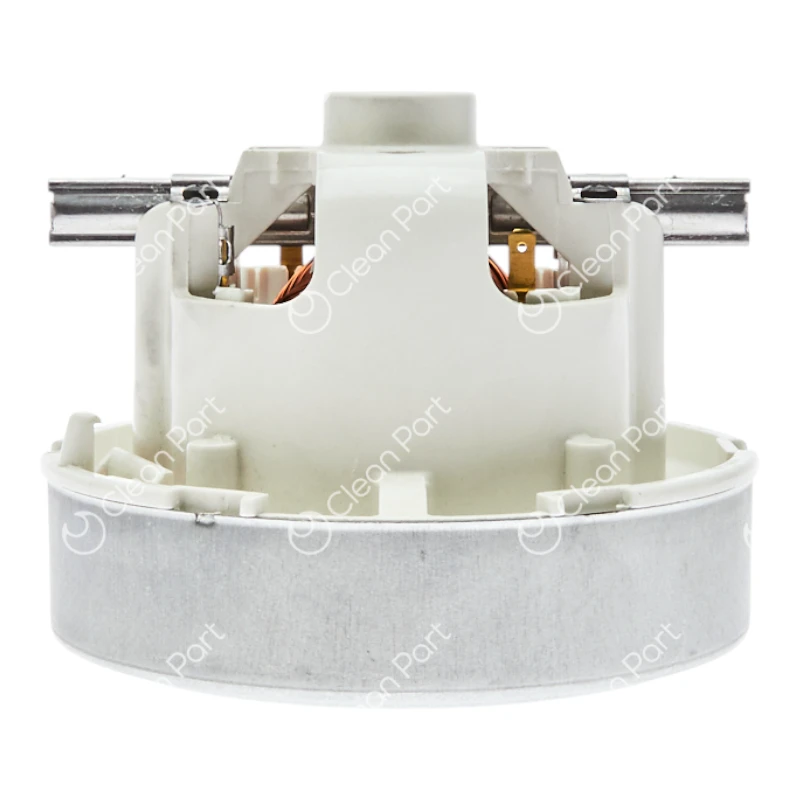

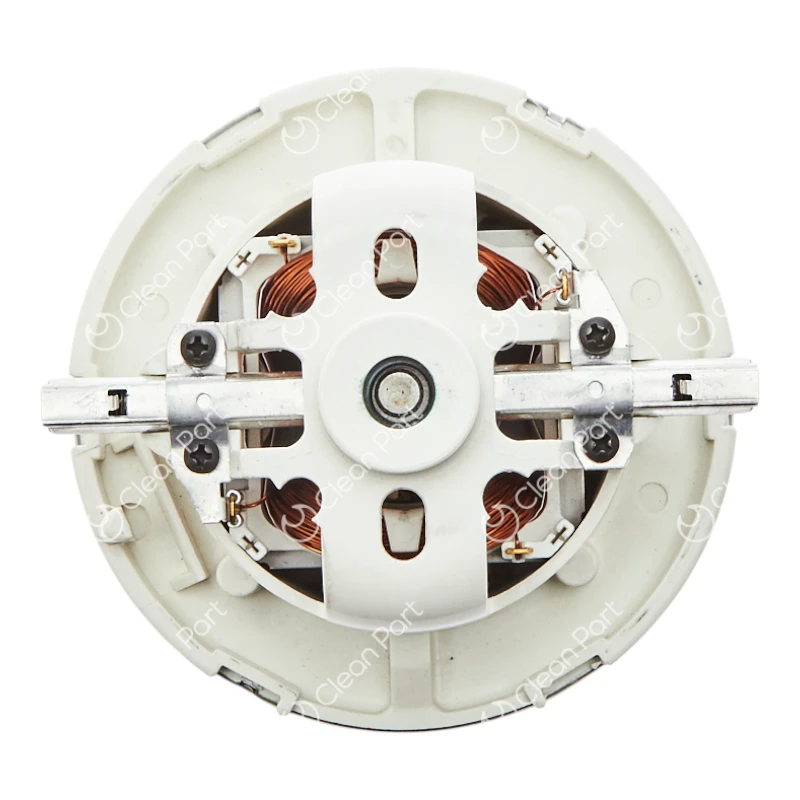

![Vacuum motor - Ametek [230 Volt] [900 Watt]](https://cleanpart.se/wp-content/uploads/302304-1.webp)
![Vacuum motor - Ametek [230 Volt] [900 Watt] - Image 2](https://cleanpart.se/wp-content/uploads/302304-2.webp)
![Vacuum motor - Ametek [230 Volt] [900 Watt] - Image 3](https://cleanpart.se/wp-content/uploads/302304-3.webp)
| Brands | Ametek |
|---|---|
| Type | Thru Flow |
| Current | AC |
| Volt | 230 Volt |
| Watt | 900 Watt |
| Steps | 1 |
| Discharge type | Thru flow |
| Height total height (mm) | 110 mm |
| Height turbine housing (mm) | 45 mm |
| Diameter turbine house (mm) | 130 mm |
| Diameter fan housing (mm) | 86.5 mm |
| Width carbon brushes (mm) | 127.5 mm |
| Cables On Motor | No |
| Height mounting holes (mm) | (-) |
| Cable Connectors | No connectors |
| Diameter exhaust pipe ID (mm) | (-) |
| Mounting holes | No mounting holes |
| Diameter exhaust pipe OD (mm) | (-) |
| Max RPM | (-) |
| Carbon brush no | 3325135 |
| Size - Intake pipe (mm) | (-) |
| OEM | 302304, 621082007 |
