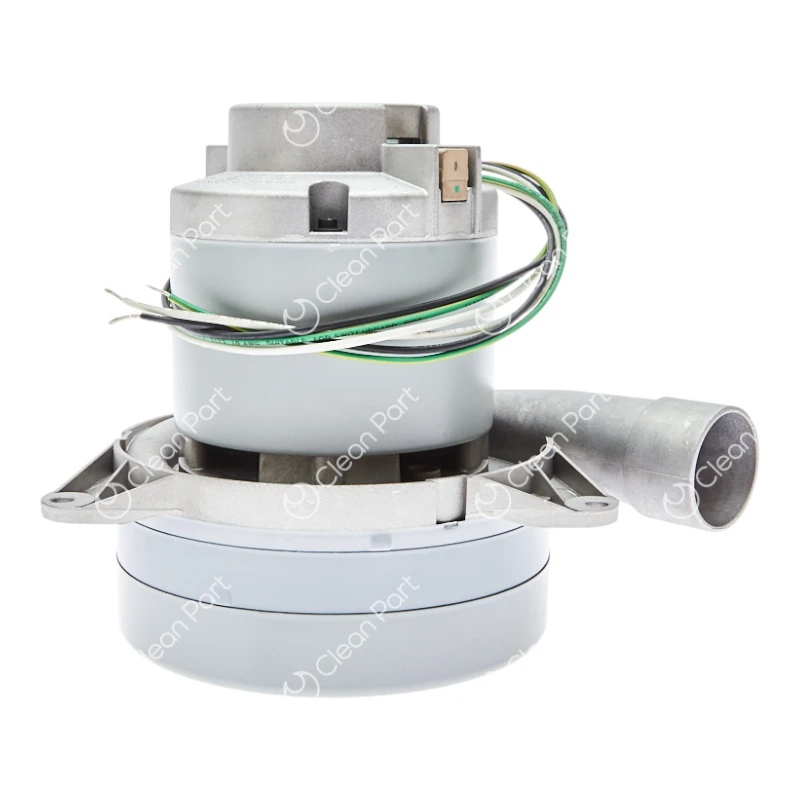

![Vacuum motor - Ametek Lamb Electric [230 Volt] [1625 Watt]](https://cleanpart.se/wp-content/uploads/119599-12-1.webp)

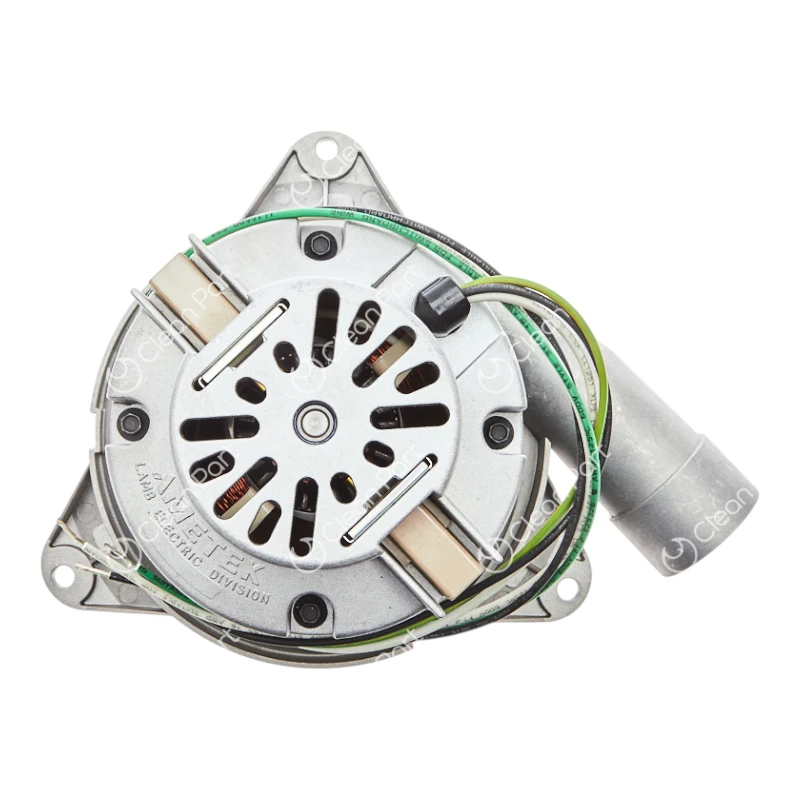

![Vacuum motor - Ametek Lamb Electric [230 Volt] [1625 Watt] - Image 2](https://cleanpart.se/wp-content/uploads/119599-12-2.webp)

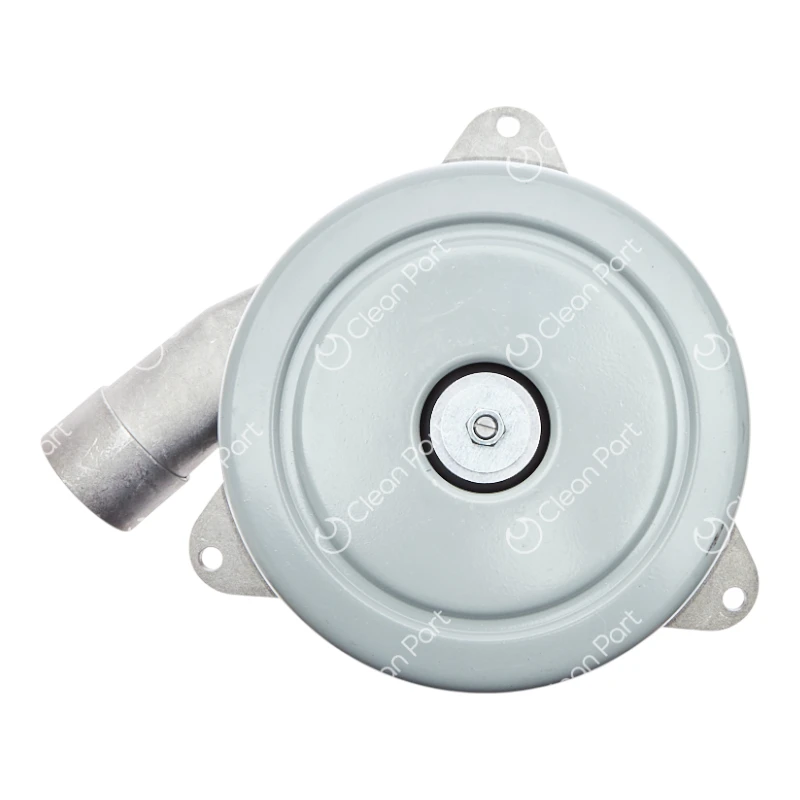

![Vacuum motor - Ametek Lamb Electric [230 Volt] [1625 Watt] - Image 3](https://cleanpart.se/wp-content/uploads/119599-12-3.webp)
| Brands | Ametek Lamb Electric |
|---|---|
| Type | Tangential By Pass |
| Current | AC |
| Volt | 230 Volt |
| Watt | 1625 Watt |
| Steps | 3 |
| Max RPM | 19730 |
| Discharge type | Exhaust pipe |
| Height total height (mm) | 219 mm |
| Height turbine housing (mm) | 77 mm |
| Diameter turbine house (mm) | 183 mm |
| Diameter fan housing (mm) | 85 mm |
| Width carbon brushes (mm) | 135 mm |
| Diameter exhaust pipe OD (mm) | 50.8 mm |
| Diameter exhaust pipe ID (mm) | 45 mm |
| Cables On Motor | Yes |
| Cable Connectors | No connectors |
| Mounting holes | 3 |
| Height mounting holes (mm) | 63 mm |
| Carbon brush no | 33450-3 |
| Size - Intake pipe (mm) | (-) |
| OEM | 119599-12, 6111100016 |
