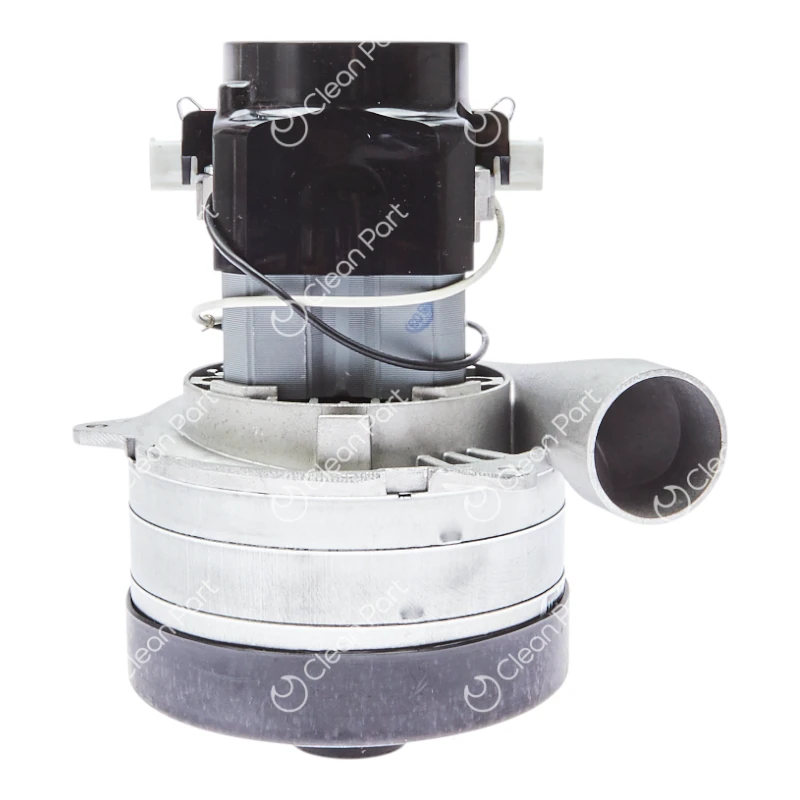

![Vacuum motor - Ametek Lamb Electric [230 Volt] [1550 Watt]](https://cleanpart.se/wp-content/uploads/117123-29-1.webp)

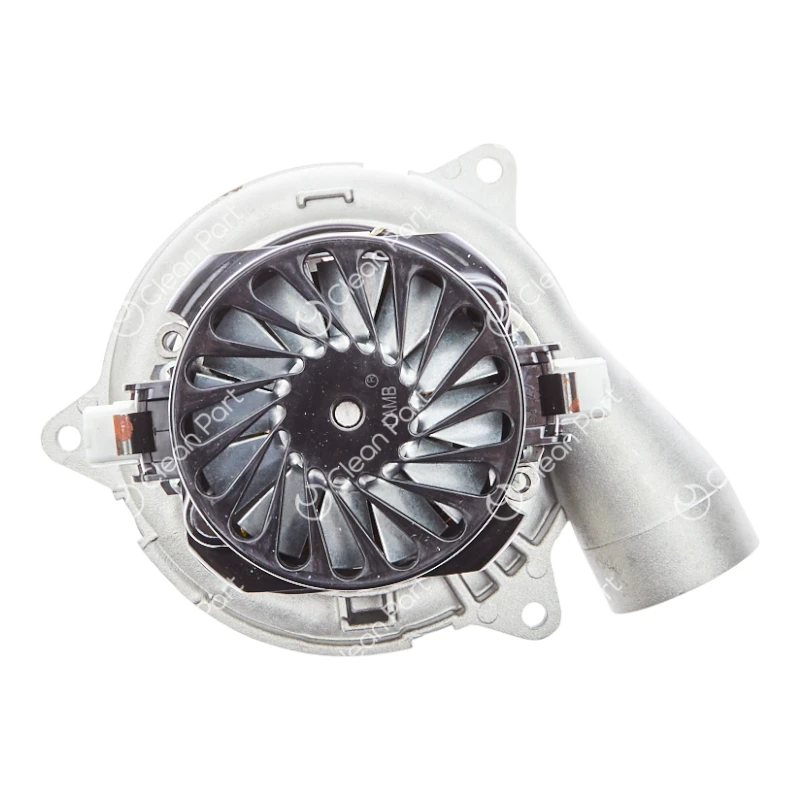

![Vacuum motor - Ametek Lamb Electric [230 Volt] [1550 Watt] - Image 2](https://cleanpart.se/wp-content/uploads/117123-29-2.webp)

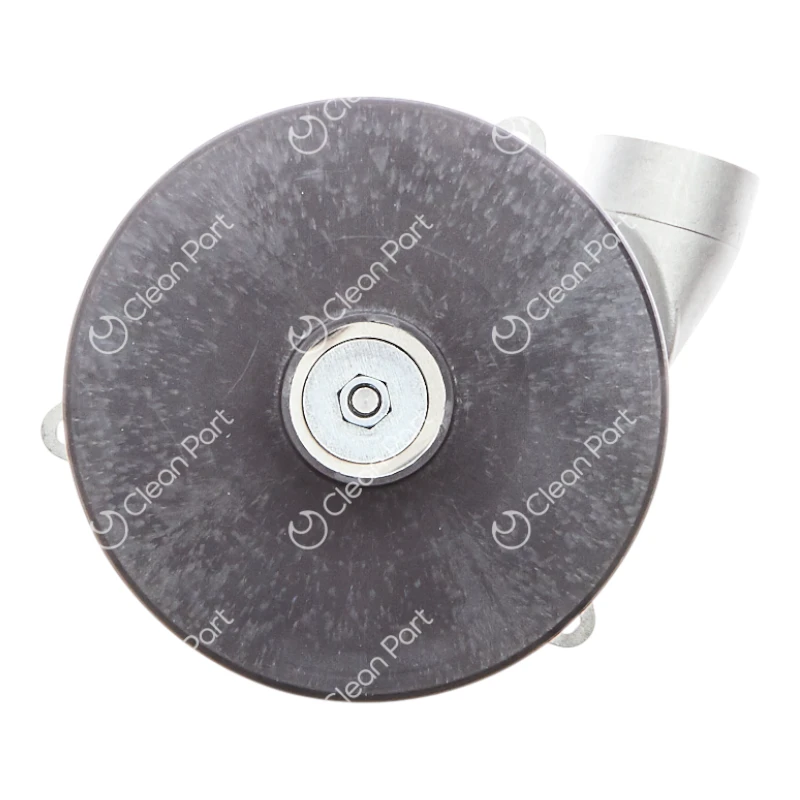

![Vacuum motor - Ametek Lamb Electric [230 Volt] [1550 Watt] - Image 3](https://cleanpart.se/wp-content/uploads/117123-29-3.webp)
![Vacuum motor - Ametek Lamb Electric [230 Volt] [1550 Watt] - Image 4](https://cleanpart.se/wp-content/uploads/117123-29-4.webp)
| Brands | Ametek Lamb Electric |
|---|---|
| Type | Tangential By Pass |
| Current | AC |
| Volt | 230 Volt |
| Watt | 1550 Watt |
| Steps | 3 |
| Max RPM | 25790 |
| Discharge type | Exhaust pipe |
| Height total height (mm) | 204 mm |
| Height turbine housing (mm) | 91.5 mm |
| Diameter turbine house (mm) | 144 mm |
| Diameter fan housing (mm) | 79 mm |
| Width carbon brushes (mm) | 127 mm |
| Diameter exhaust pipe OD (mm) | 48 mm |
| Diameter exhaust pipe ID (mm) | 43 mm |
| Size - Intake pipe (mm) | 40.5×25.4 mm |
| Cables On Motor | Yes |
| Cable Connectors | No connectors |
| Mounting holes | 3 |
| Height mounting holes (mm) | 75.5 mm |
| Carbon brush no | 33423-12 |
| OEM | 117123-29 |
