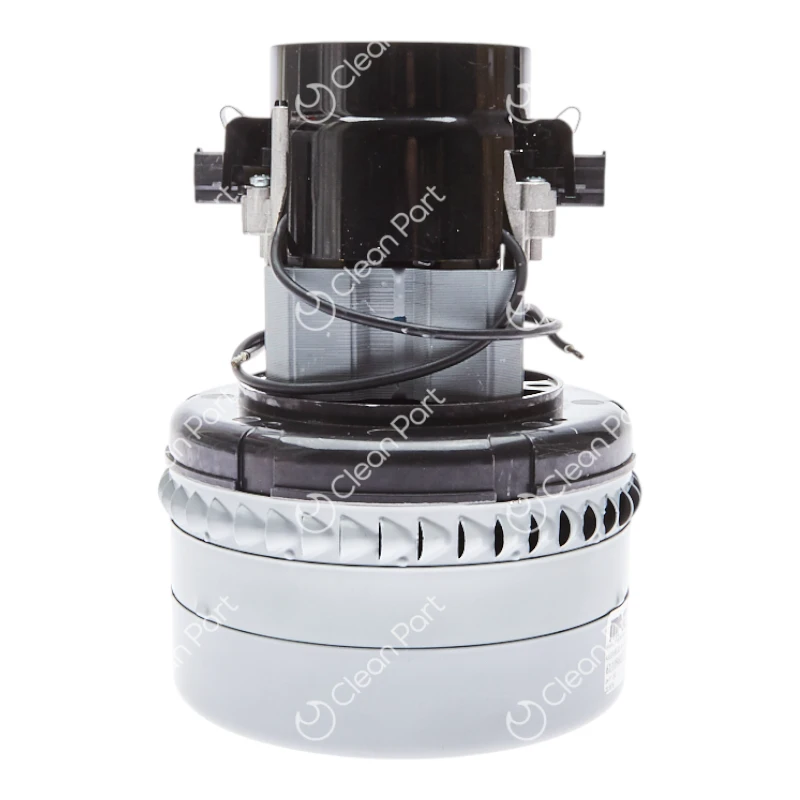

![Vacuum motor - Ametek Lamb Electric [24 Volt] [550 Watt]](https://cleanpart.se/wp-content/uploads/116514-13-1.webp)

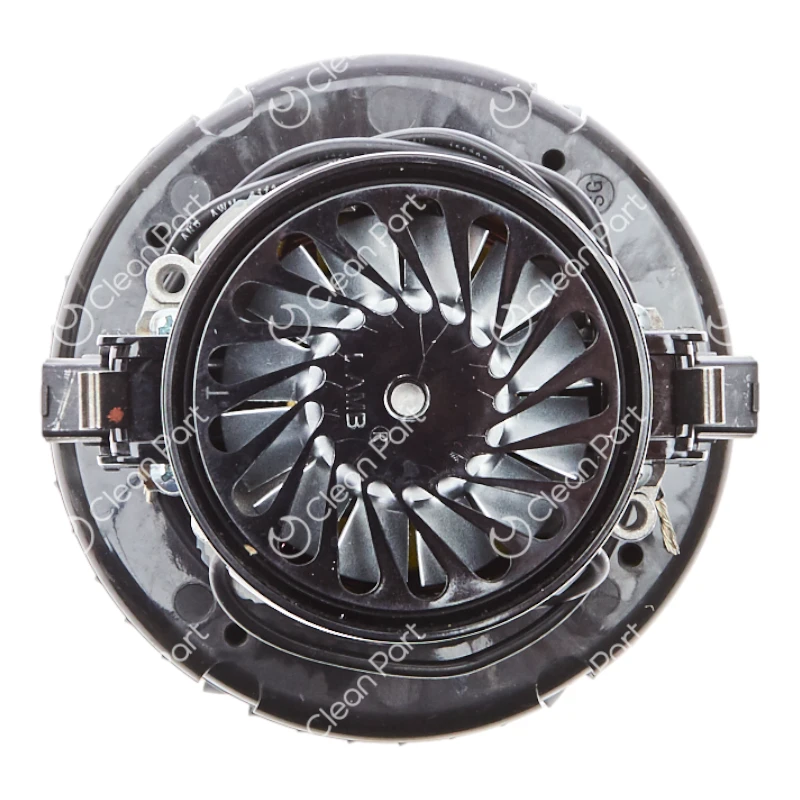

![Vacuum motor - Ametek Lamb Electric [24 Volt] [550 Watt] - Image 2](https://cleanpart.se/wp-content/uploads/116514-13-2.webp)

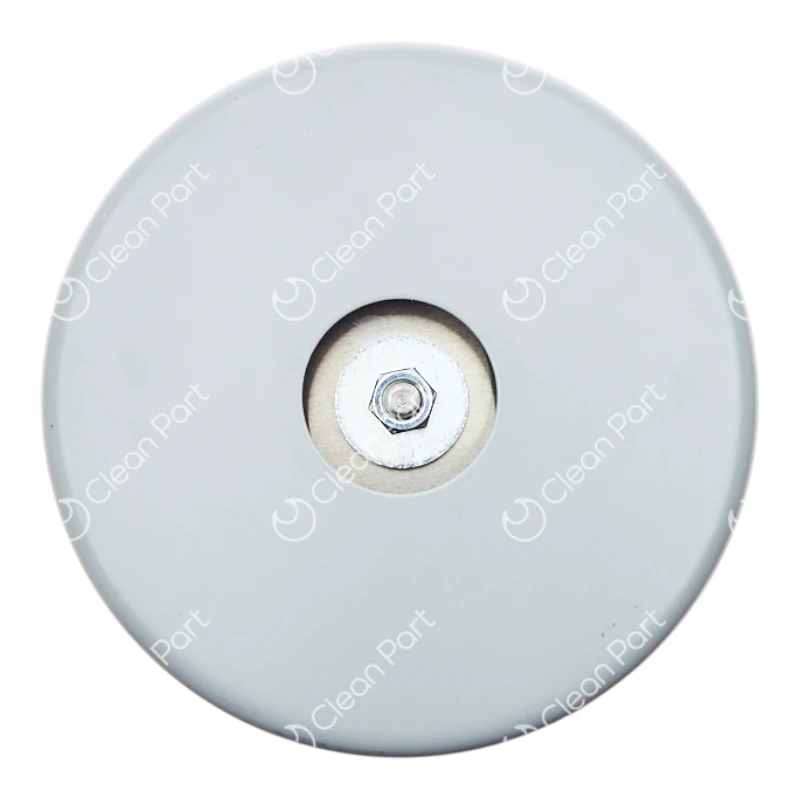

![Vacuum motor - Ametek Lamb Electric [24 Volt] [550 Watt] - Image 3](https://cleanpart.se/wp-content/uploads/116514-13-3.webp)
Cleanfix RA535 IBCT
Floor Phanter 60
Floor Shark 45 B
ICA CT15 B35
ICA CT15 B35 ECS
ICA CT15 B35 R
IPC CT15 B 35
IPC CT15 B 35 ECS
IPC CT15 B 35 R
VLX 416S
Wetrok Duomatic 500
Wetrok Duomatic 650
Wetrok Duomatic 800
Wetrok Triomatic 650
| Brands | Ametek Lamb Electric |
|---|---|
| Type | Peripheral By Pass |
| Current | DC |
| Volt | 24 Volt |
| Watt | 550 Watt |
| Steps | 3 |
| Max RPM | 16167 |
| Discharge type | Gills |
| Height total height (mm) | 198.5 mm |
| Height turbine housing (mm) | 91.5 mm |
| Diameter turbine house (mm) | 144 mm |
| Diameter fan housing (mm) | 79 mm |
| Width carbon brushes (mm) | 120.4 mm |
| Cables On Motor | Yes |
| Cable Connectors | No connectors |
| Height mounting holes (mm) | (-) |
| Mounting holes | No mounting holes |
| Diameter exhaust pipe ID (mm) | (-) |
| Diameter exhaust pipe OD (mm) | (-) |
| Carbon brush no | 33423-25 |
| Size - Intake pipe (mm) | (-) |
| OEM | 116514-13, 6110960127 |
Cleanfix RA535 with N5201
