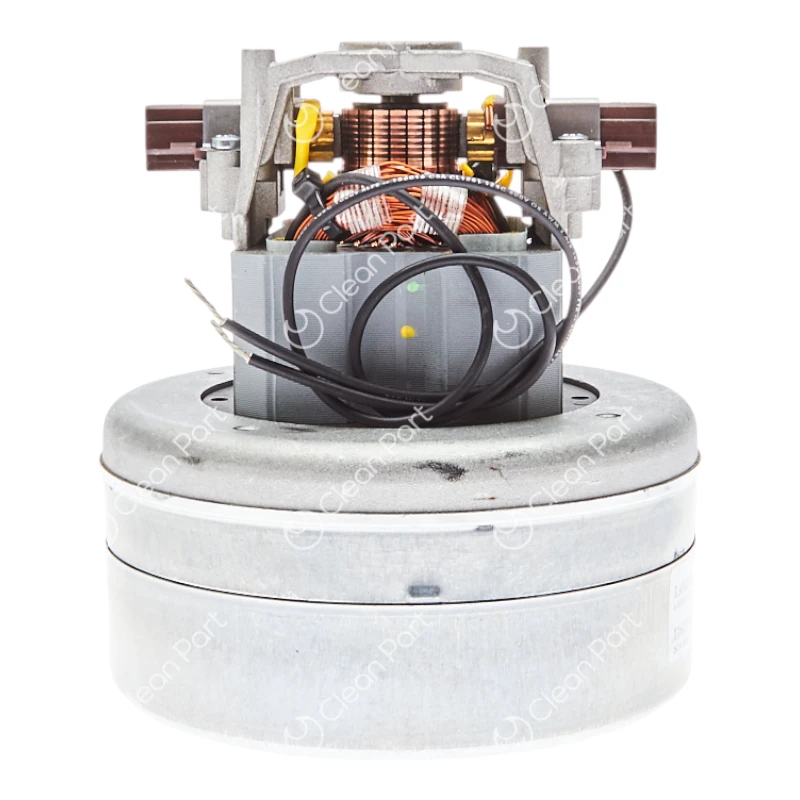

![Vacuum motor - Ametek Lamb Electric [230 Volt] [1025 Watt]](https://cleanpart.se/wp-content/uploads/116111-00-1.webp)

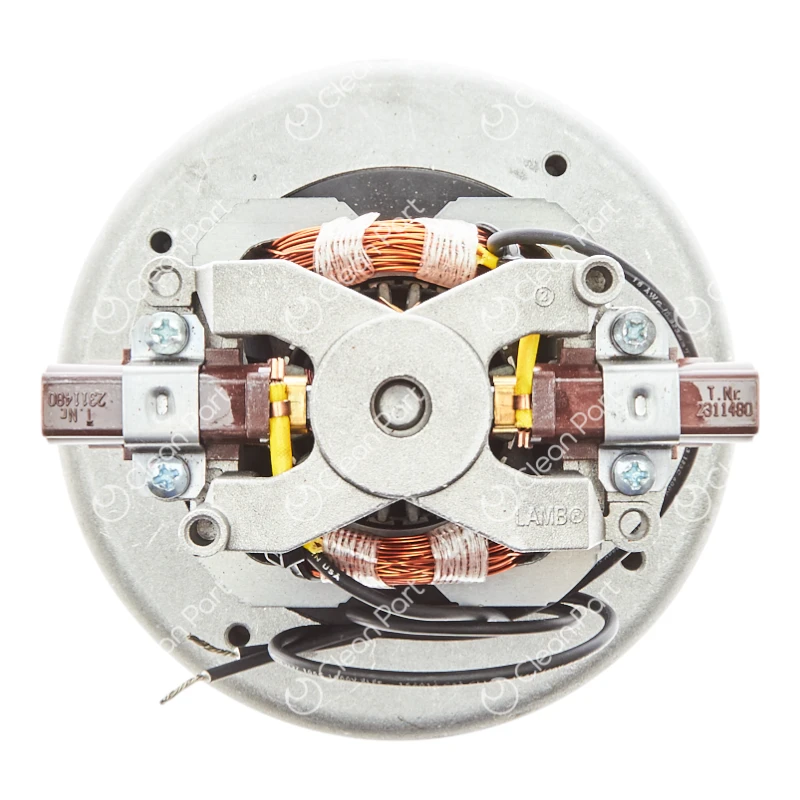

![Vacuum motor - Ametek Lamb Electric [230 Volt] [1025 Watt] - Image 2](https://cleanpart.se/wp-content/uploads/116111-00-2.webp)

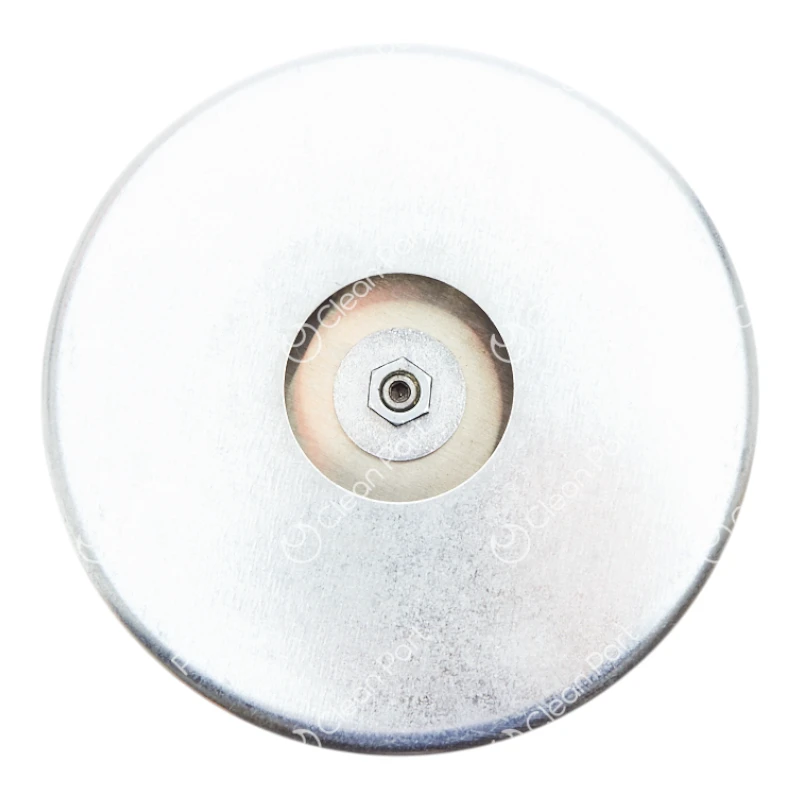

![Vacuum motor - Ametek Lamb Electric [230 Volt] [1025 Watt] - Image 3](https://cleanpart.se/wp-content/uploads/116111-00-3.webp)
| Brands | Ametek Lamb Electric |
|---|---|
| Type | Thru Flow |
| Current | AC |
| Volt | 230 Volt |
| Watt | 1025 Watt |
| Steps | 2 |
| Discharge type | Thru flow |
| Height total height (mm) | 156 mm |
| Height turbine housing (mm) | 72 mm |
| Diameter turbine house (mm) | 144 mm |
| Diameter fan housing (mm) | 0 mm |
| Width carbon brushes (mm) | 121 mm |
| Cables On Motor | Yes |
| Height mounting holes (mm) | (-) |
| Cable Connectors | No connectors |
| Diameter exhaust pipe ID (mm) | (-) |
| Mounting holes | No mounting holes |
| Diameter exhaust pipe OD (mm) | (-) |
| Max RPM | (-) |
| Carbon brush no | 33378 |
| Size - Intake pipe (mm) | (-) |
| OEM | 116111-00 |
